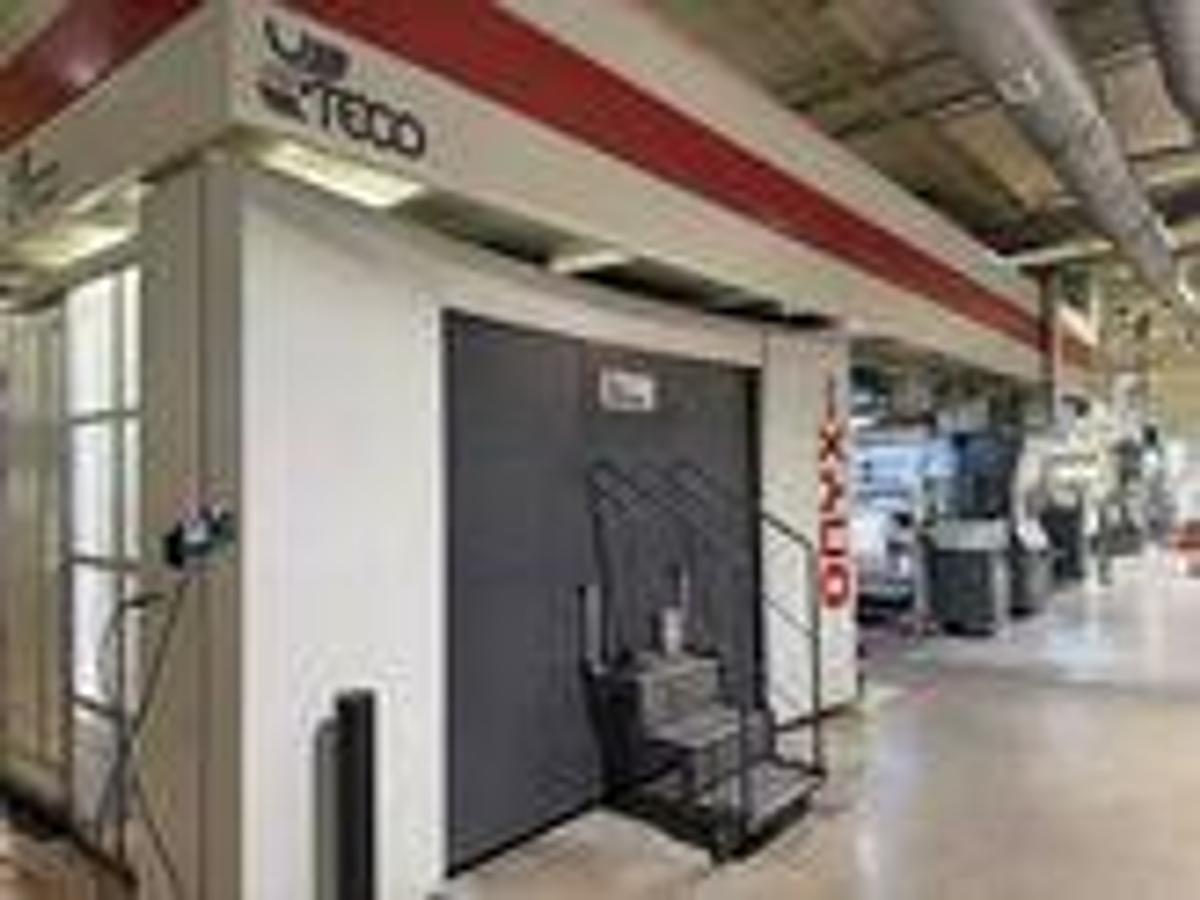

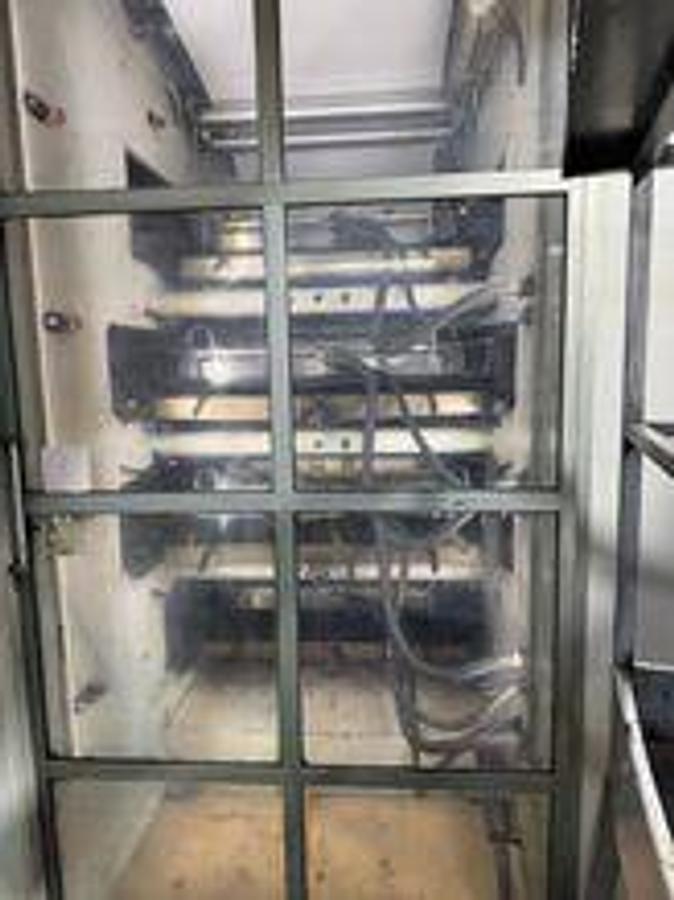

2010 Uteco Onyx 808 Gearless CI Flexo Press

UTECO ONYX 808 GEARLESS CI FLEXO PRESS

Number of colours: 8

Print possibilities: 8 + 0

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1050mm

Print width: 1000mm

Minimum print repeat: 320mm

Maximum print repeat: 800mm

Unwind: turret automatic with roll loading system

Maximum reel diameter unwind: 800mm

Rewind: turret automatic with roll unloading system

Maximum reel diameter rewind: 800mm

Drying: 2 zones, 4 fans, final tunnel 4mt length

Gas burners: x 2, 200.000kcl/h each

Automatic air recirculation system with LEL controls on each zone

Video camera, Grafykontrol with auto register control

Web guides: in and out

Viscosity control

Washing system: automatic

Inking system: closed chamber doctor blades

Anilox: x 18 ceramic

Print sleeves: approximately 200
