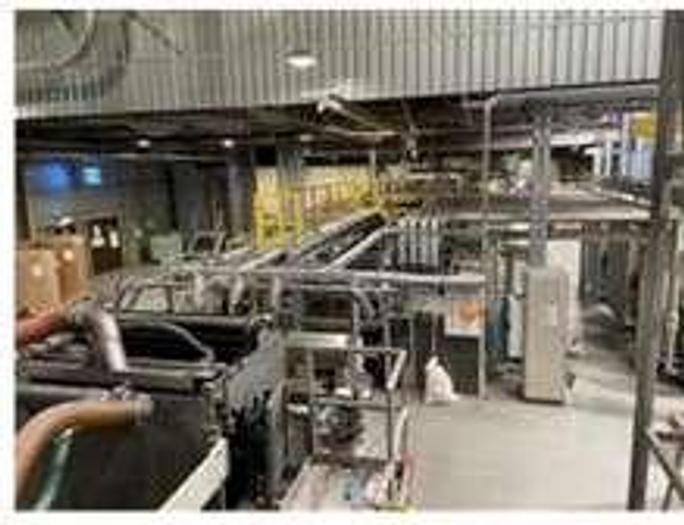

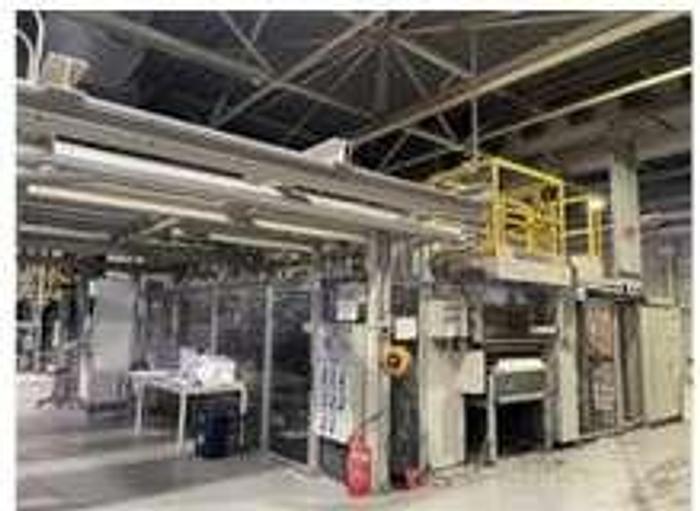

1999 Bruckner Film Extrusion Line

1999 Bruckner Film Extrusion Line

Available quantity:1

orCall +44 (0) 1924 200444

Description

Number of layers: 5

Film structure: ABCDE

Material: BOPP

Output: 360m/min

Width: 6600mm


Extruder 1: A, single screw, Bandera, output 250kg/h, dosing system


Extruder 2: B, single screw, Bandera, output 300kg/h, dosing system


Extruder 3: C, main extruder, Cascade, Bandera, output 3000kg/h, BMS gravimetric dosing system


Extruder 4: D, single screw, Bandera, output 300kg/h, dosing system


Extruder 5: E, single screw, Bandera, output 250kg/h, dosing system


Head: Cloren automatic die

Die width: 1026

Automatic thickness control, 2 thickness gauges, first after casting Themorficher FAG beta rays, source Promethium 147, second after stretching

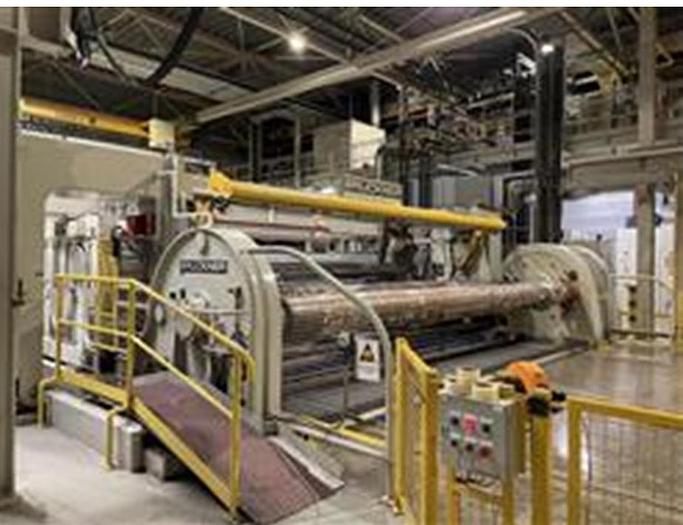

Chill roll unit: water bath, diameter 2600mm

MDO: 25m preheating, 15m stretching, 21m anealing

TDO: Bruckner, Cahin FOK 444

Flame treatment: Esseci

Rewind width: 6600

Rewind: turret


Specifications

ManufacturerBrueckner
ModelFilm Extrusion Line
Year1999
ConditionUsed
Stock Number57811
Match codeI04
