2007 Uteco Onyx 876GL
No longer available

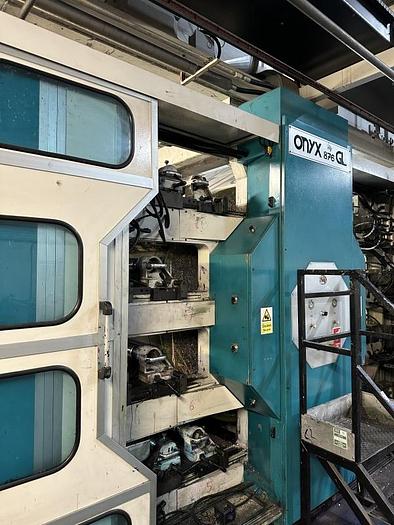

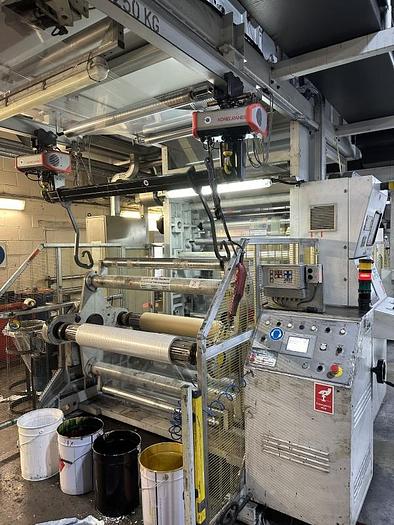

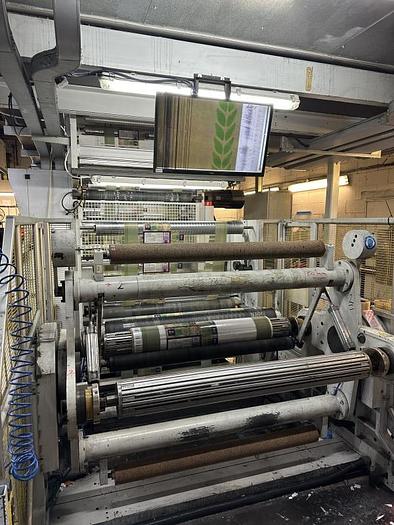

2007 Uteco Onyx 876GL
Available quantity:1
Description
Fast sleeve change
4 motor per deck CNC position system
Computer supervision
Web width: 1250mm
Print width: 1200mm
Minimum print repeat: 330mm
Maximum print repeat: 800mm
Unwind: turret - Maximum reel diameter unwind: 800mm
Rewind: turret - Maximum reel diameter rewind: 800mm
Drying: 2 zones, 4 fan, 2 gas burners
Video camera: BST with print assistance features
Web guides: BST EK1000
Inking system: closed chamber doctor blade
Register control via camera
Reel loading gantry
Ink pumps: x 8
Air shafts: 4 x 76mm, ir shafts: 4 x 152mm
Approx 190 print sleeves
Approx 15 anilox rollers
Specifications
| Manufacturer | Uteco |
| Model | Onyx 876GL |
| Year | 2007 |
| Condition | Used |
| Stock Number | 57813 |
| Number of colours | 8 Colour Gearless CI |
| Web width | 1250mm |
| Print width | 1200mm |
| Repeat range | 330mm - 800mm |
