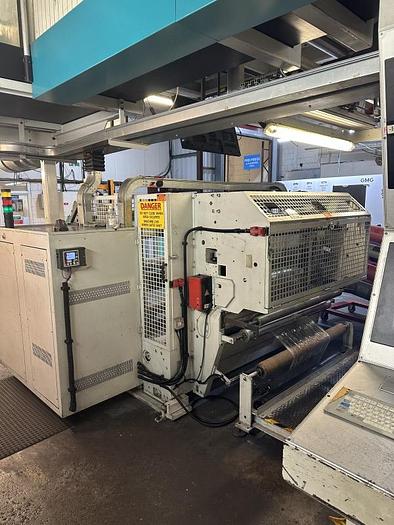

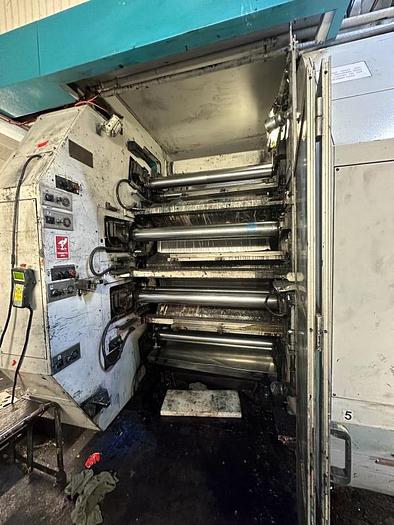

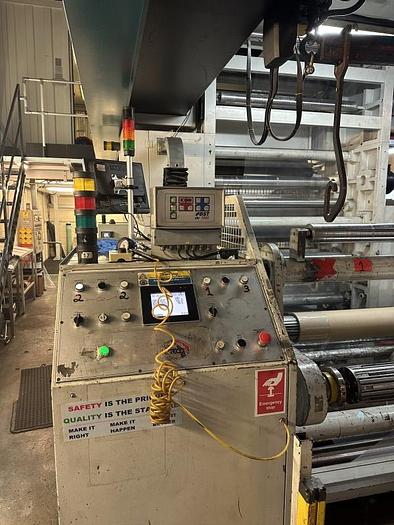

2007 Uteco Emerald 825 4M 120 Gearless Flexo Printing Press

Number of colours: 8

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1250mm

Print width: 1200mm

Minimum print repeat: 330mm

Maximum print repeat: 800mm

Unwind: turret

Maximum reel diameter unwind: 800mm

Rewind: turret

Maximum reel diameter rewind: 800mm

Drying: 2 zones, 4 fans, 2 gas burners

Drying tunnel: heat 216kw

Air speed: 35m/s, 6mt length, in blow fan 10000Nm3/h, out flow 1200Nm3/h, between col dry heat 118kw, air speed 35m/s, in blow fan 6900nm3/h, outflow 8300nm3/h

Video camera: BST with defect control

Ink pumps: x 8

Air shafts: 4 x 76mm, 4 x 152mm

Reel loading Gantry

All available spare parts

Machine manuals and electrical diagrams

Available as optional for additional price plate mounter Heaford with cameras

Mandrel already suitable for this press

Mechanical speed: 365m/min

Chiller
