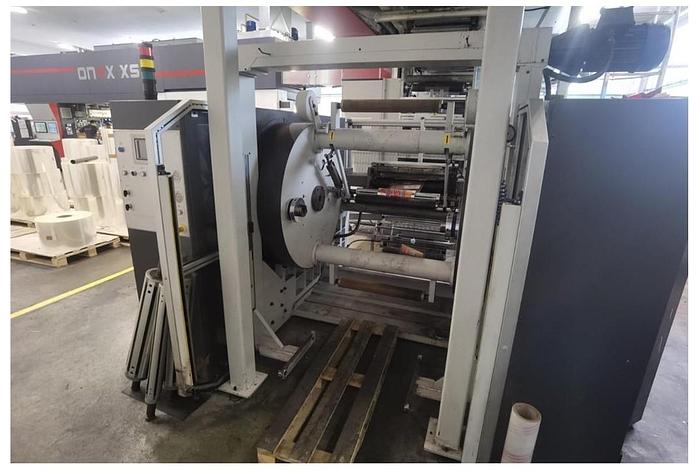

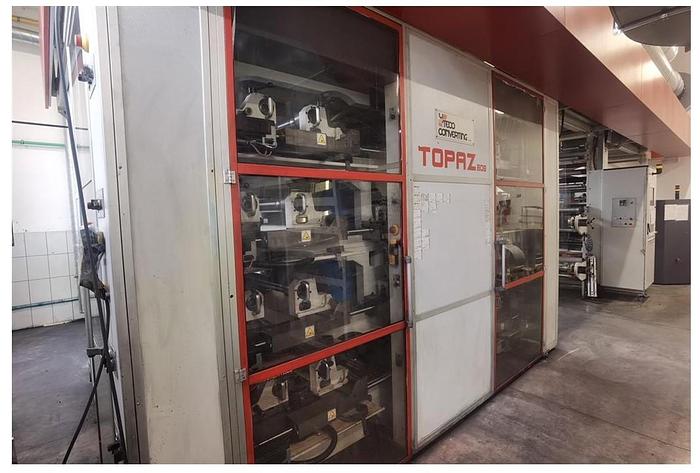

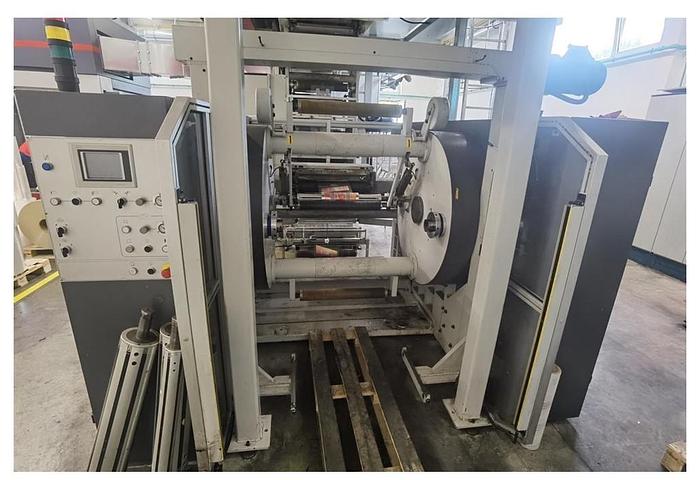

2014 Uteco Topaz 808GL

UTECO TOPAZ 808GL CI FLEXO PRESS

Number of colours: 8

Gearless

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 650mm

Print width: 600mm

Minimum print repeat: 290mm

Maximum print repeat: 800mm

Unwind: 2 position bracket type with marriage roll for drop splice

Maximum reel diameter unwind: 800mm

Rewind: turret automatic nonstop

Maximum reel diameter rewind: 800mm

Drying: 2 zones, 4 fans 5mt tunnel, 2 gas burners

Video camera: Grafikontrol Grafikscan 2100

Web guides: BTS

Washing system

Inking: 16 mechanic ink pumps SMC

+ Anilox

+ Print sleeves

Mechanical speed: 300 m/min

Plate mounter included
