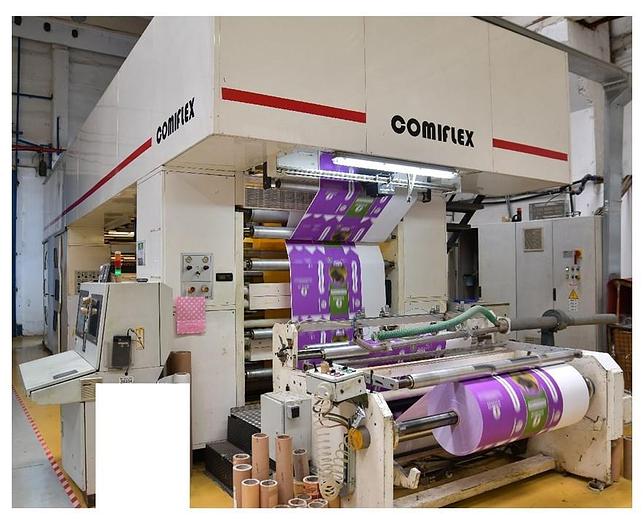

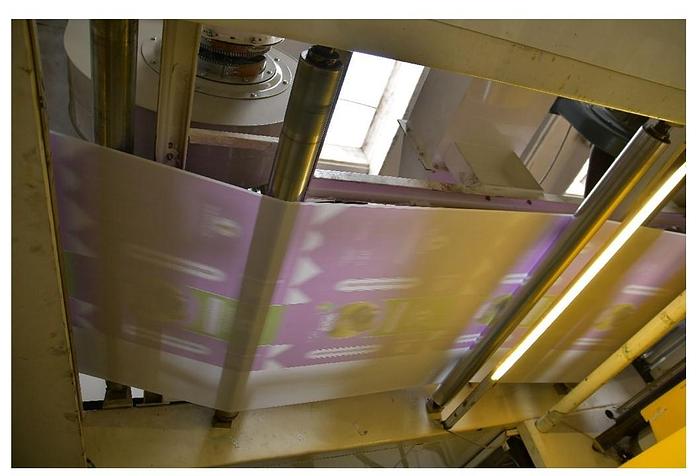

2008 Comiflex CI Flexo Press

COMIFLEX CI FLEXO PRESS

Number of colours: 6

Print possibilities: 6 CI + 1 stack + UV

Fast sleeve change

Computer supervision

Web width: 1580mm

Print width: 1500mm

Minimum print repeat: 400mm

Maximum print repeat: 1200mm

Unwind: single, pneumatic shafts of 3, 4 and 6inch, with lift and 1500kg capacity

Maximum reel diameter unwind: 1200mm

Rewind: single, pneumatic shafts of 3, 4 and 6inch, with lift and 1500kg capacity

Maximum reel diameter rewind: 1200mm

Drying: 2 zones, 4 fans, 2 gas burners

Video camera:  L & C Graph

Web guides: electronic with ultrasound

Washing: automatic station

Inking: automatic station with pneumatic pumps

Material: paper/carton 30-120gsm

Printing speed upto: 250mpm

Print cylinder gearing: 1.5915, 5mm

+ Anilox

+ Sleeves
