2006 W&H Complete Paper Sack Line
2006 W&H Complete Paper Sack Line
Available quantity:1
Description
Windmoller & Holscher Paper Sack Line:
Capacity: up to 200.000 sacks/per day, 60 million sacks/per year

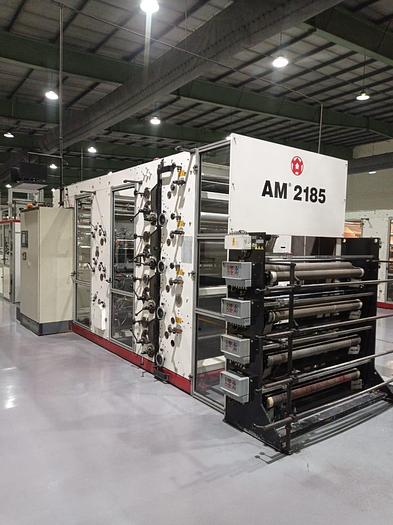

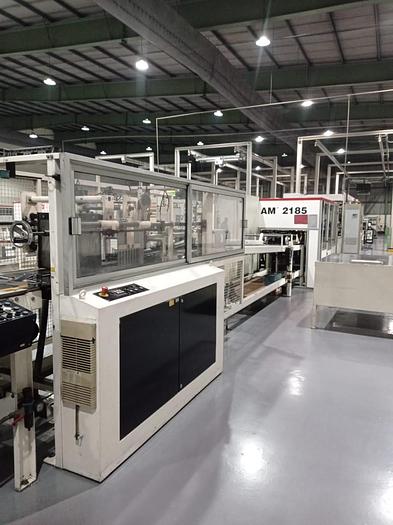

Tuber: W&H AM 2185
Year: 2006
4 plies
Stepped end and flush cut
Min-max tube width: 260 – 500 mm
Min tube length stepped end: 480 mm
Min-max tube length flush cut: 450 – 850 mm
Max paper roll width: 1030 mm
Max paper roll diameter: 1350 mm
Number of unwind stands: min 4
Core i.d.: 76 mm
Output: 350 tubes/min. The owner makes 250 tubes/min.
Max web speed: 300 m/min
In line printer

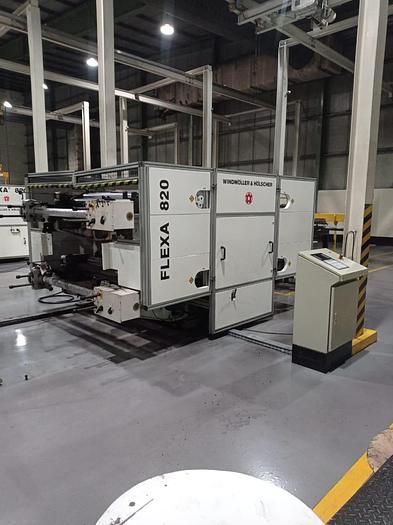

W&H Flexa 820 Printer
Year: 2006
4 color; currently equipped with 2 printing decks
Web width: 1370 mm
W&H Transystem 1

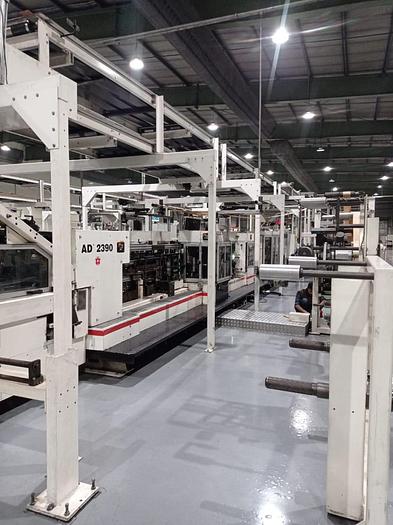

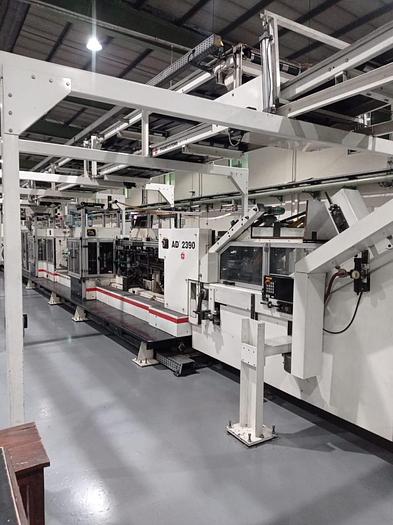

Bottomer: W&H AD 2390
Year: 2006
With valve unit
Type of valve: two valve types are produced by the owner – flat and tubular. The valve with PE liner is not possible to produce
Min-max tube lengths: 540 -940 mm
Min-max tube width: 320 – 550 mm
Min-max sack length (stepped end and flush cut): 410 – 740 mm
Min-max sack width: 320 – 550 mm
Bottom center distance: 320 – 600 mm
Bottom width:
For stepped-end sacks: 90 – 140 mm (valid for 3-ply stepped end sack)
For flush-cut sacks: 90 – 140 mm
Min-max valve length: 100 – 220 mm
Min-max valve cut-off length: 100 – 220 mm
Min-max roll width: 100 – 300 mm
Bottom patch (but the owner doesn’t use as not a customer requirement)
With printer for bottom patch (2 colors)
Min-max cut-off length: 180 – 450 mm
Min-max roll width: 80 – 180 mm
Output: with 2-drum delivery maximum 300 sacks/min (depending on raw material quality, product design and operator qualification).The owner makes 230 sacks/min
Packet frequency: with 2-drum delivery maximum 25 sacks/min
W&H Transystem 2

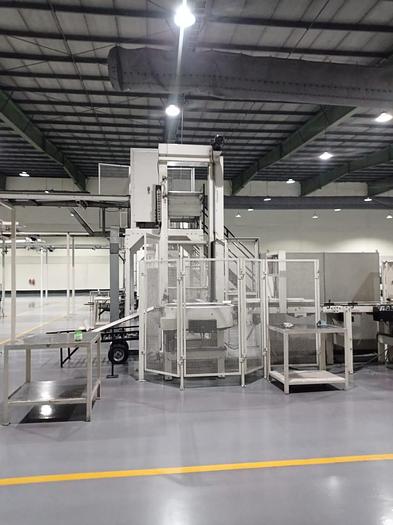

Palletizer
W&H Arcomat 2
Year: 2006
Min-max sacks length: 250 – 1400 mm
Min-max sacks width: 180-750 mm
Pallet dimensions (per W&H-pallets specification):
Min. 600×750 mm, max. 1400×1500 mm
Min-max empty pallet height: 100 – 180 mm
Palletizing surface: min 600×600 mm, max 1500×1600 mm
Max packet height: not compressed 180 mm, compressed 80 mm
Max empty pallet stack height: 1400 mm
Max stacking height: 2500 mm
Max stack weight: 1500 kg
Min-max working range of pallet press: 850 – 2500 mm
Stack pressing force: appr. N 10.000
Height of outfeed conveyor: 300 mm
Specifications
Manufacturer | W&H |
Model | Complete Paper Sack Line |
Year | 2006 |
Condition | Used |
Stock Number | 57917 |
