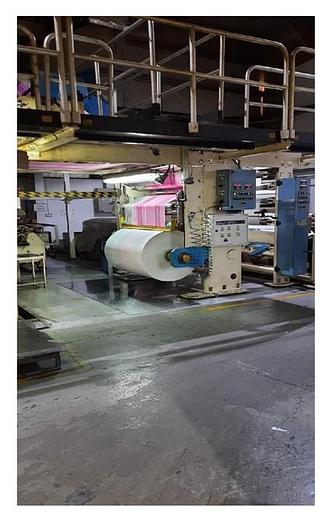

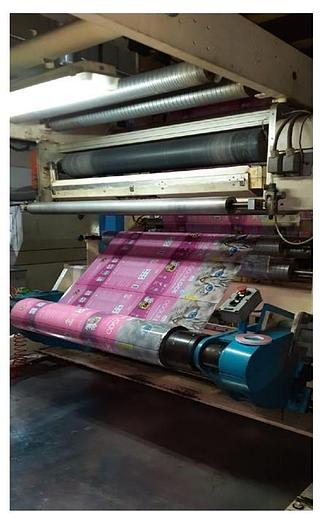

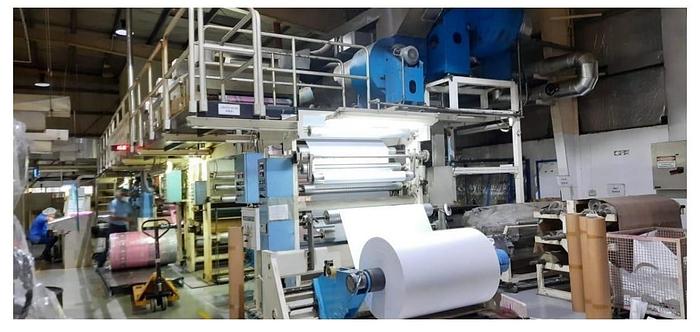

2001 MB HLC/WSL 130/02 Laminator Coater Converting Machine

MB HLC/WSL 130/02 LAMINATOR COATER CONVERTING MACHINE

Application: Lamination/coating

Lamination/coating: Multiple coatings

Working width: 1215mm

Materials: BOPP, PETP, LDPE, LLDPE, PAPER & LAMINATES, ALU

First unwind: single position shaftless

Maximum diameter reel unwind: 1000mm

Second unwind: single position shaftless

Third unwind: single position shaftless

Rewind: single position shaftless

Maximum diameter reel rewind: 1000mm

Coating: interchangeable trolley, gravure trolley and wax/hot melt trolley

Second coating: interchangeable trolley, solventless trolley, gravure trolley

Drying, first coating unit: 4 zones drier with 4 tunnel 2.5m length each, total 10m

Thermo oil heat exchanger second coating unit: vertical hood total length 3mt

Register control

Pumping mixing: for solventless, year 2018

Corona treatment: Martignoni

Wax lamination with lacquering

Wax coating: one/two side

Hot melt full coat/registered

Cold seal

Wet / dry lamination

Registered lamination

Coding

Trolleys supplied: x 4, 1 gravure, 1 gravure for cold seal, solventless, hot melt

Pumping unit for hot melt

Heating units: x 2 for solventless trolley

Firefighting system co2
