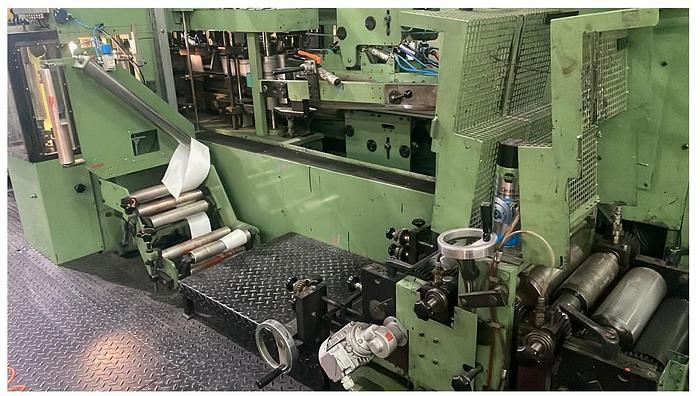

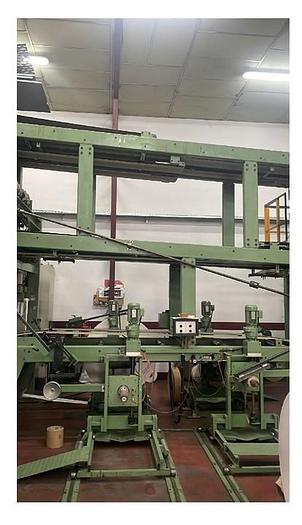

1998 Paper Sack line

1998 Paper Sack line

Available quantity:1

Description

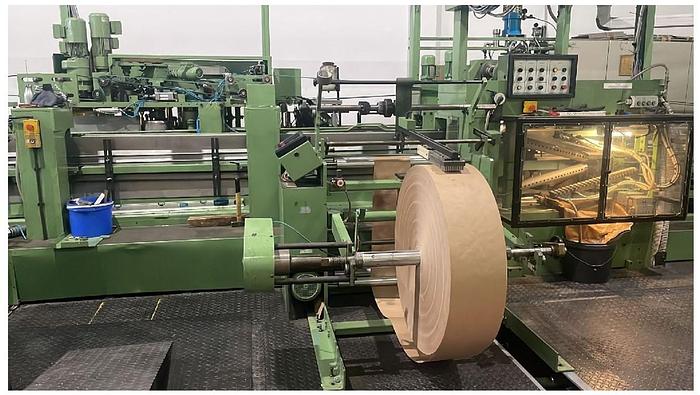

ROGNINI TUBER

Tube width: 30–65

Cutting length: 50-135

Cutting systems: flash cut

Number of plies: x 3

Maximum paper/print widths: 122/117cm

Paper stand diameter: 120

Speed: 80, mechanical 90 depending on the size of the bags, experience of operators etc.

Format gears: 53, 58, 61, 65, 69, 76, 78, 79, 81, 84, 86, 87, 90, 93, 96, 97, 100, 105, 111, 115, 118, 122, 124, 128cm

In line printer: 4 colour

Printing cylinders: 61, 65, 69, 76, 78, 81, 84, 86, 90, 96, 100, 105, 111, 115, 118, 122, 124cm

Cliche thickness: 2.84mm


KOCHSIEK BOTTOMER

Sack width: 27–65

Sack length: 32-127

Tube length: 36-138

Bottom width: 7–21.5cm

Bottom centre distance: 24-120

Valve units: 1 + 2

Tubular with PE

Cement and gusset valve

Bottom patch: 2 with overlapping over the edge of the bottom and bottom rotators on both sides

Bottom printing system: 2 x 2 printing cylinders

Fifa system on valve station and bottom patch units

Digital glue system on bottom overlapping and bottom pasting patches

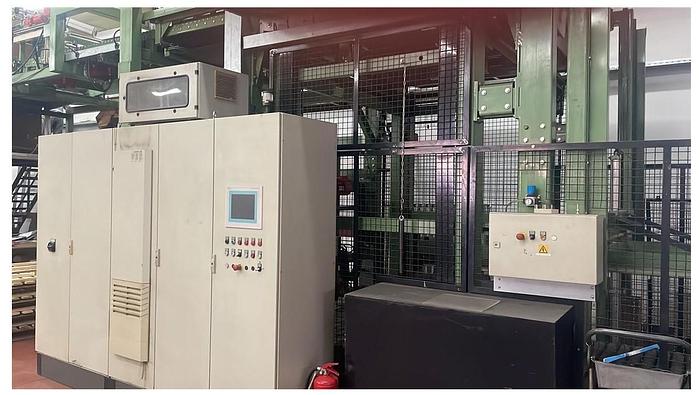

PLC control unit Siemens S5 and S7

Mechanical/production speed: up to 200pcs/min depending on the size of the bags, paper and experience of operators etc.

Vacuum pump: x 2


S Press belt with counting and bundle station


ICOMA PACKTECHNIC

Palletiser Icoma 15 bundle/min



Specifications

ManufacturerPaper Sack line
Year1998
ConditionUsed
Stock Number57952
