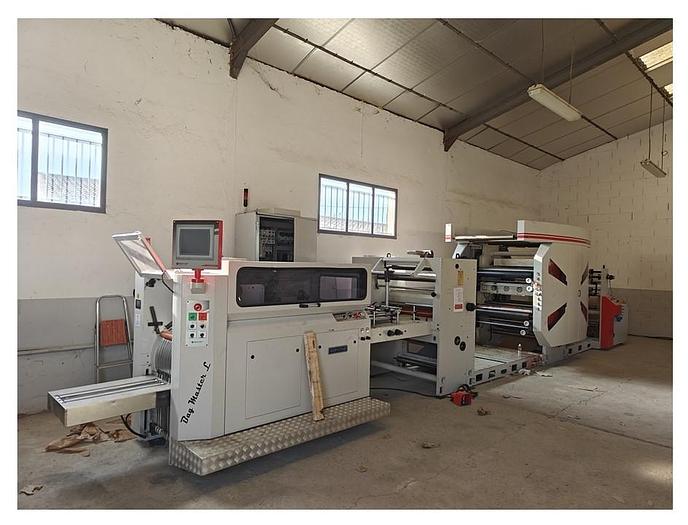

2017 Somtas Bag Master SIINE Bag Making Machine

SOMTAS BAG MASTER SLINE PAPER BAG MACHINE

Width: 1000mm

Materials: Paper, Kraft 25-100gas

Reel fed

Bag length: 150-760mm

Bag width: 80-350 + gusseting 12-80mm

Bottom width: 20-30mm

Cycle: 600bags/min

Unwind: 1250mm, overall diameter 76mm, maximum 1200kg

Electrical consumption: cable 4 x 16mm, 2 + 10mm, 2 maximum 25m protection

Earth, less than 5ohm, 3phase + N + PE380v ± 5%, tolerance 50hz

Power: 45kw

Air consumption: minimum 6 bar, maximum 8 bar 150lt/min

Dimensions: 1780 x 11000 x 2550mm

Weight: 8.5ton
