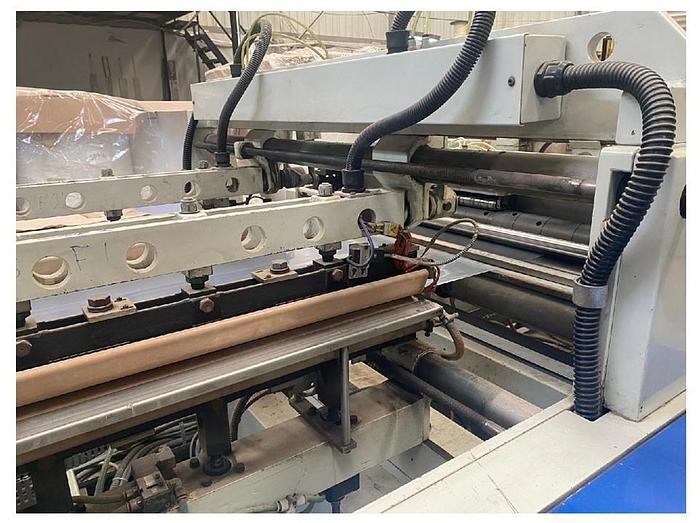

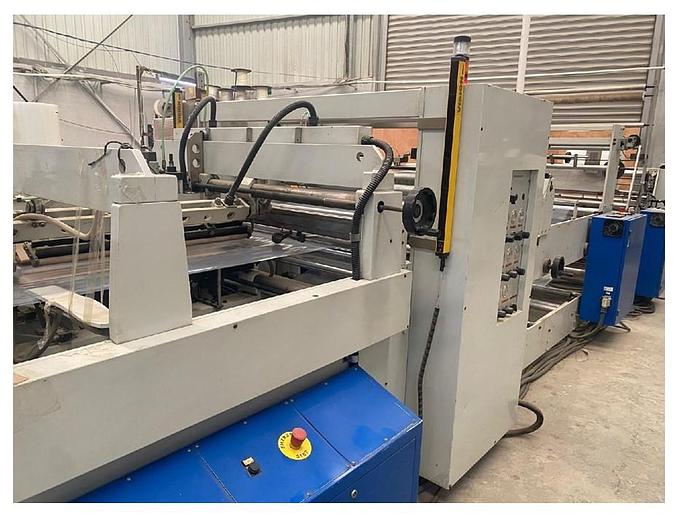

2008 Elba SAV20 12 Pouch and Vacuum Bag Machine

ELBA SAV20 12 POUCH AND VACUUM BAG MACHINE

Sealing/bags: multiple

Type: 3 side seal, 2 ups of doypack, 1 up of side gusseted central seal, quad 4 seals

Bag length: 80- 800mm, repeat 1600mm

Bag width: 120-1200mm

Unwind: dual bracket for rolls diameter 1200mm

Cycle: 150strokes/min

Pneumatic movement of sealing bars

Double unwind stand PBV12 width 1200mm

With expansion shafts

Gusset forming group and longitudinal welding bar SFL121

Continuous perforator group PPC1

Zipper unwind and guiding group PCVM on 2 lanes

Longitudinal welders holder group ISI O12

Equipped with: 2 longitudinal adjustable welding bars SLODRSL with cooling unit

Quick change

Double zipper profile

Additional longitudinal welders holder group ISLO12

Equipped with: 2 longitudinal adjustable welding bars ST ODRSL with

cooling unit

Quick changes: x 2

Doypack profiles: x 2

Trim cutting group RIB2

Transversal welding devices STR1

Cooling device DRS1

Automatic welding

Machine central part: SA V2012 complete with photocell, cutting blade and exit module MUV3

Longitudinal cutting groups TAI

Automatic collecting table TNL121

Chiller
