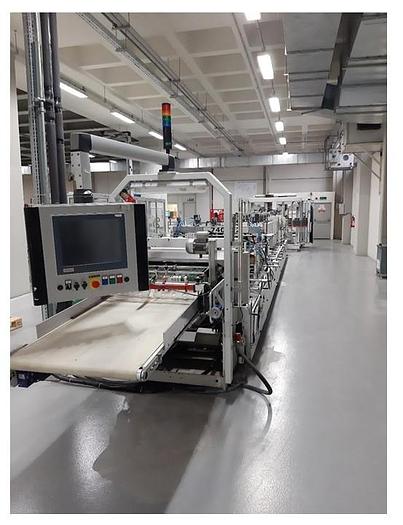

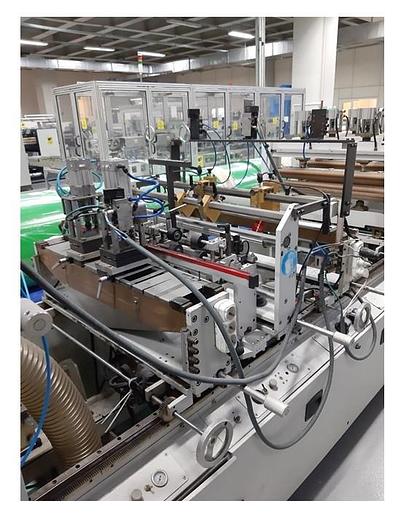

2013 Waterline Ritebag 600 Pouch and Vacuum Bag Machine

WATERLINE RITEBAG 600 POUCH AND VACUUM BAG MACHINE

Type of sealing/bags: Stand up pouches

Bags: 2 and 3 side seal pouches and stand up pouches, gusset depth 20-100mm

Bag length: maximum 650mm, 610mm stand up on 1 lane, 320mm, 305mm stand up on 2 lanes, minimum 80mm

Bag width: maximum 800mm, minimum 80mm

Unwind: single

Maximum reel width: 1530mm

Reel diameter: 1016mm

Shafts: 3”, 6”

Trimming blades: x 2

Edge guide

Tension control

Punching station in register for gusset hole

Main folding triangle for production of 3 side seal from 1 web

Gusset folding board for production of stand up from 1 web

Cycle/min: 125

Machine is servo driven, with several independent servo drives for maximum flexibility and to optimize change over time

Longitudinal zipper sealing

2 lanes

Longitudinal sealing: x 2, 800 + 100mm and cooling 400 + 100mm

Cross sealing sections: x 2, 680mm

Handle hole punching

Corner punchings: V, U

Register photocell

MD trimming

Cross cutting section, flying knife 1 or 2 lanes
