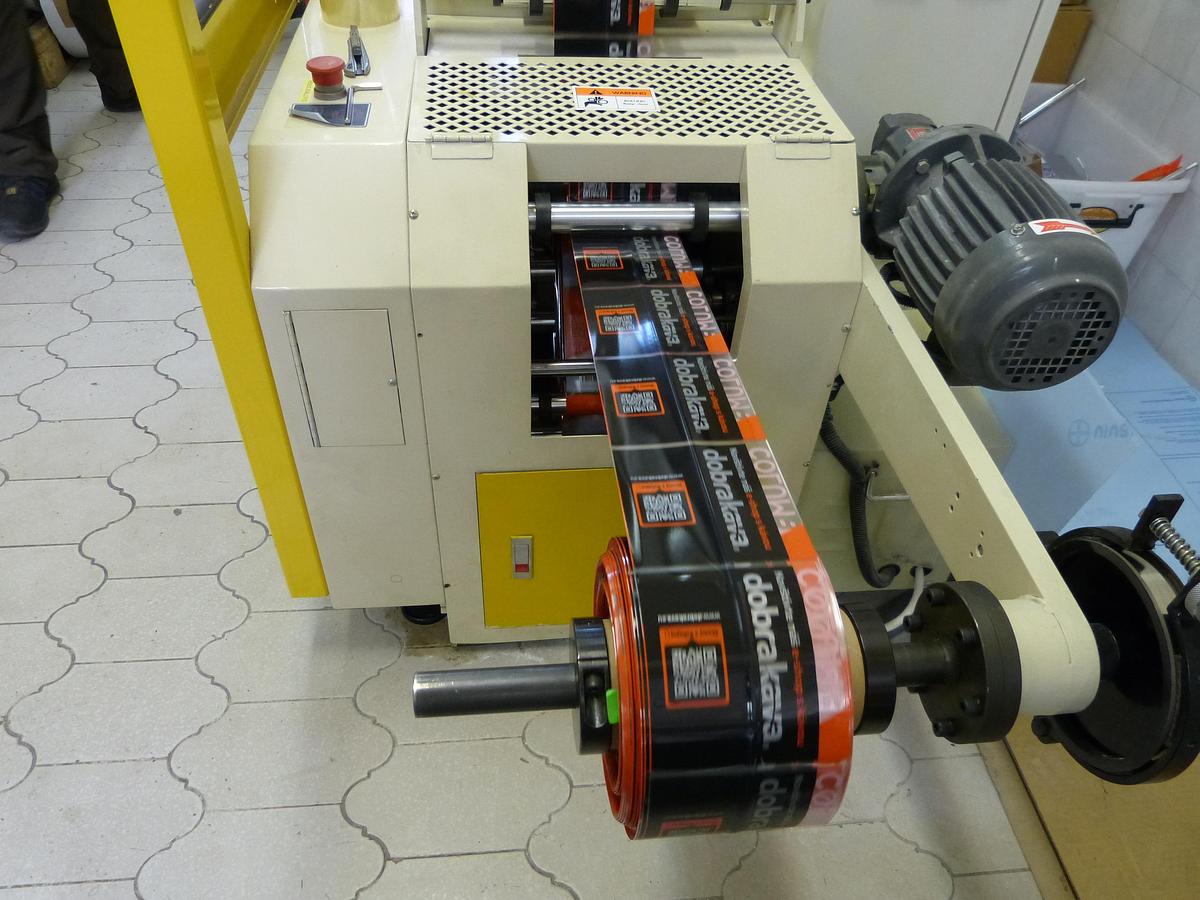

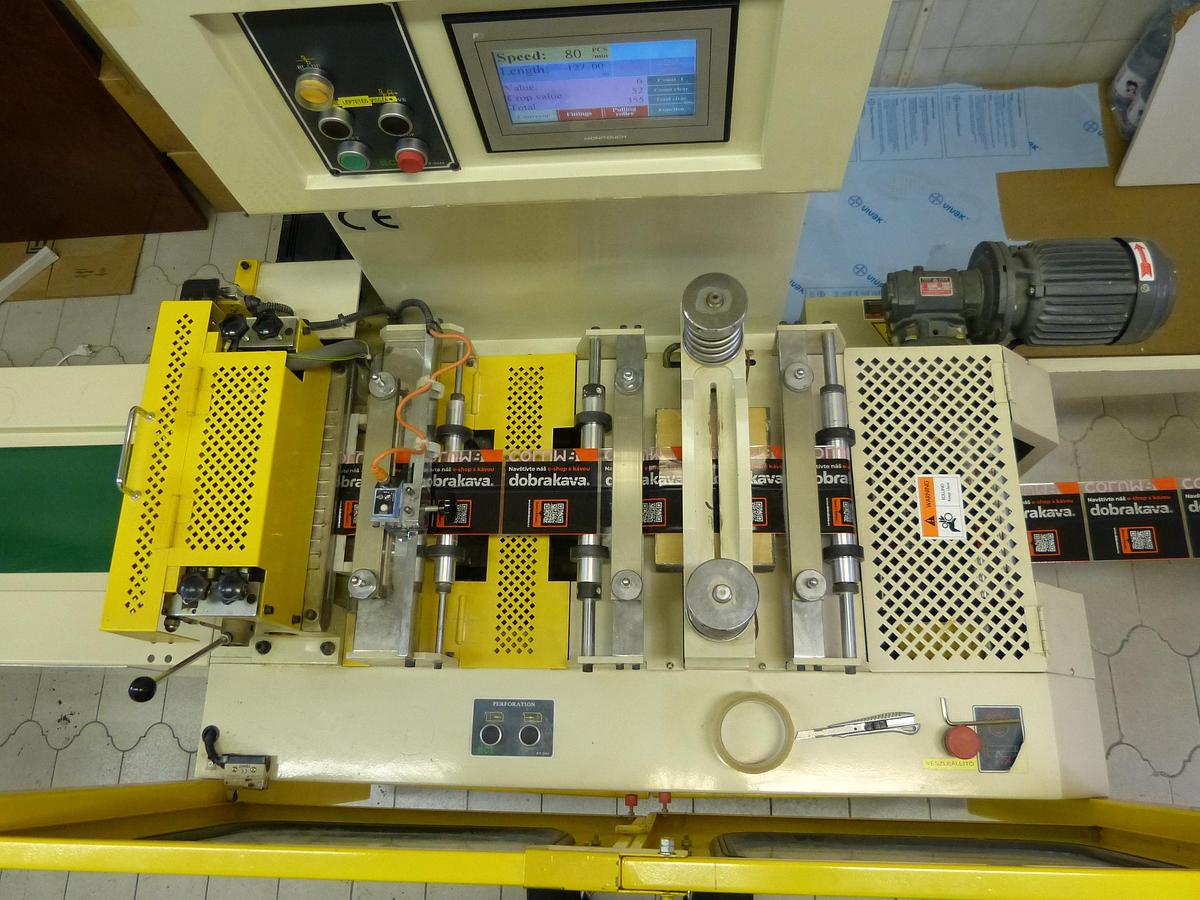

HCI Shrink Sleeve Label Cutting Machine FSC -201 PVC

SHRINK LABEL CUTTING MACHINE

FSC-201 PVC: this cutting machine is suited for perforating and cutting operations for various shrink labels, shrink sleeves

It provides flexible cutting profiles of the product

Also for electronics, computer and optical materials, film roll and foil roll cutting operations

Series: FSC 201, 301, 501 PVC Cutting Machine

Unwind

Replaceable unwind shaft is suited for five claw coreless and 3” paper core

AC motor driven unwind dancing roller unit for auto speed varied and assures that the most stable web feeding even under high speed cutting machine operation

Perforating

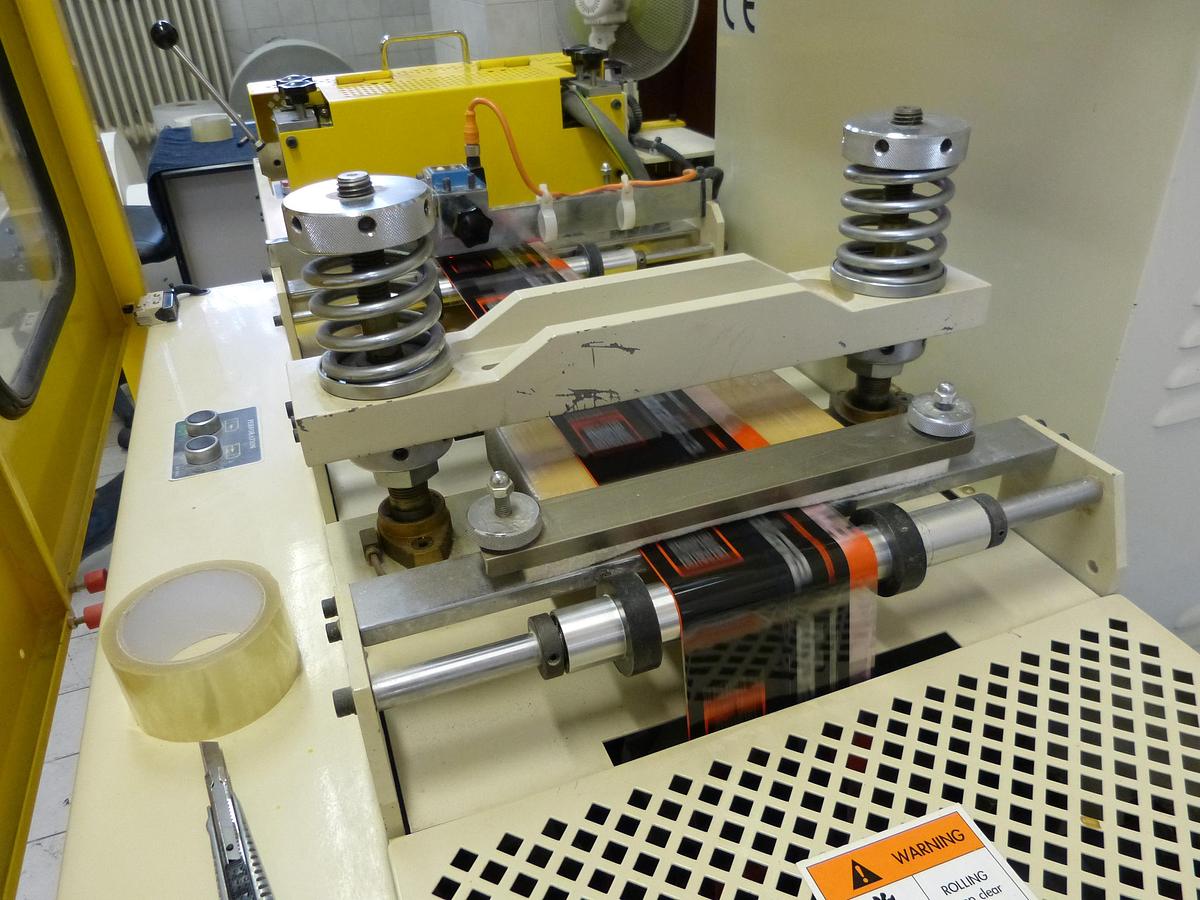

Equipped with perforating device which can easily adjust the pressure and position

Cutting

Cutting length is accurately controlled by servo motor incorporated with a German made photocell sensor for greatly upgrading the production speed

Equipped with static electricity removing device

Employs the product conveyor

 Micro computer control system

Auto counting function

Accumulative recording function

Auto stop function for photocell ineffective

Specification FSC 201 PVC high speed cutting machine

Tube width: 30-200mm

Material diameter maximum: 700mm

Unwind inner diameter: 76mm, 3” or 300mm 5 claw coreless

Cutting length: 10-400mm

Mechanical speed: 30-350pcs/min

Feeding speed maximum: 35mm

Machine was actually commissioned in 2015 and had low utilisation
