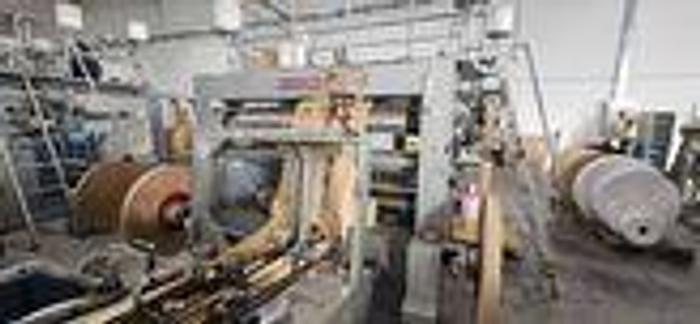

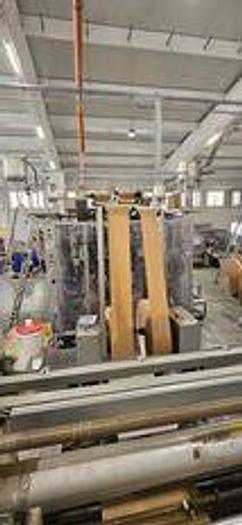

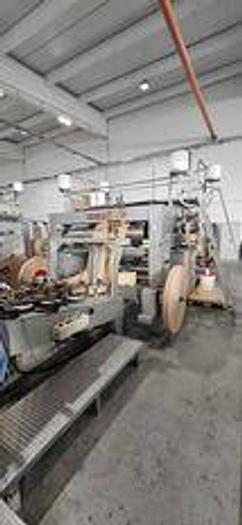

2016 Newlong 1546TS+538HS SOS Paper Bag Making Line

NEW LONG 1546TS+538HS SOS PAPER BAG MAKING LINE

Materials: Paper 70-125g/m2

Reel fed

Handel unit: flat

Bag length maximum: 650mm

Bag length minimum: 360mm

Bag width maximum: 460mm

Bag width minimum: 150mm

Bottom width maximum: 220mm

Bottom width: 80mm

Cycle/min: 180

Unwind paper roll width: 485-1390mm

Paper roll diameter: 350-1200mm

With handle

Cutting length: 360mm–650mm concealed handle, 360mm–580mm unconcealed handle Bag length: 265mm–590mm concealed handle and unconcealed handle

Bag width: 180mm–460 mm concealed handle and unconcealed handle

Bottom width: 80 mm–220mm concealed handle and unconcealed handle

Handle centre distance: 260mm–680mm

Without handle

Cutting length: 360mm–650mm

Bag length: 265mm–590mm

Bag width: 150mm–460mm

Bottom width: 80mm–220mm

Handle: 6 folded

Handle width: 18mm

Handle length: 323mm

Handle patch width: 160mm

Handle patch length: 52mm
