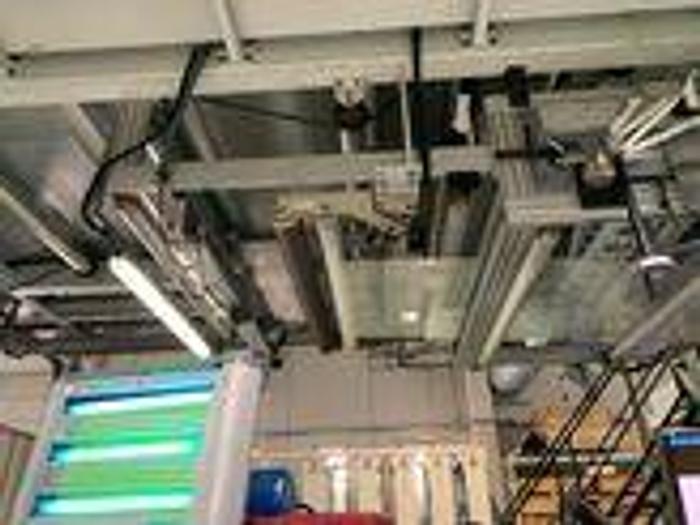

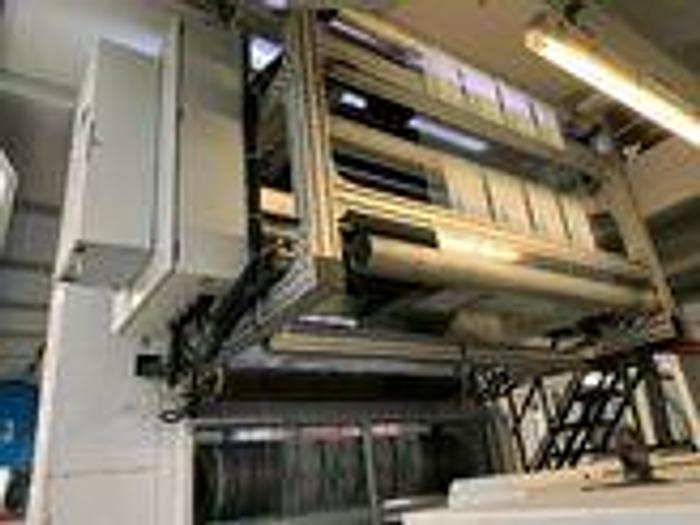

2011 Uteco Diamond HP108 CI Flexo Line

UTECO DIAMOND HP108 CI FLEXO PRESS LINE

Number of colours: 10

Print possibilities: 10 + 0, 10 + 10

Gearless

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1550mm

Print width: 1500mm

Minimum print repeat: 420mm

Maximum print repeat: 870mm

Unwind: turret automatic

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic

Maximum reel diameter rewind: 1000mm

Drying: 2 zones, 4 fans with 6mt final tunnel and thermo oil heat exchangers

Video camera: Grafykontrol

Web guides

BST Viscosity control

Washing system: automatic

Inking: closed chamber doctor blades

Printing speed maximum: 600mpm

Carbon fiber mandrels

Automatic printing set up and automatic register control with click and drag system Grafykontrol

Drum cleaning device

Defect control: 100 x 100 Grafikontrol

Turning bar: 10 + 10 half width

+ Anilox

+ Print sleeves
