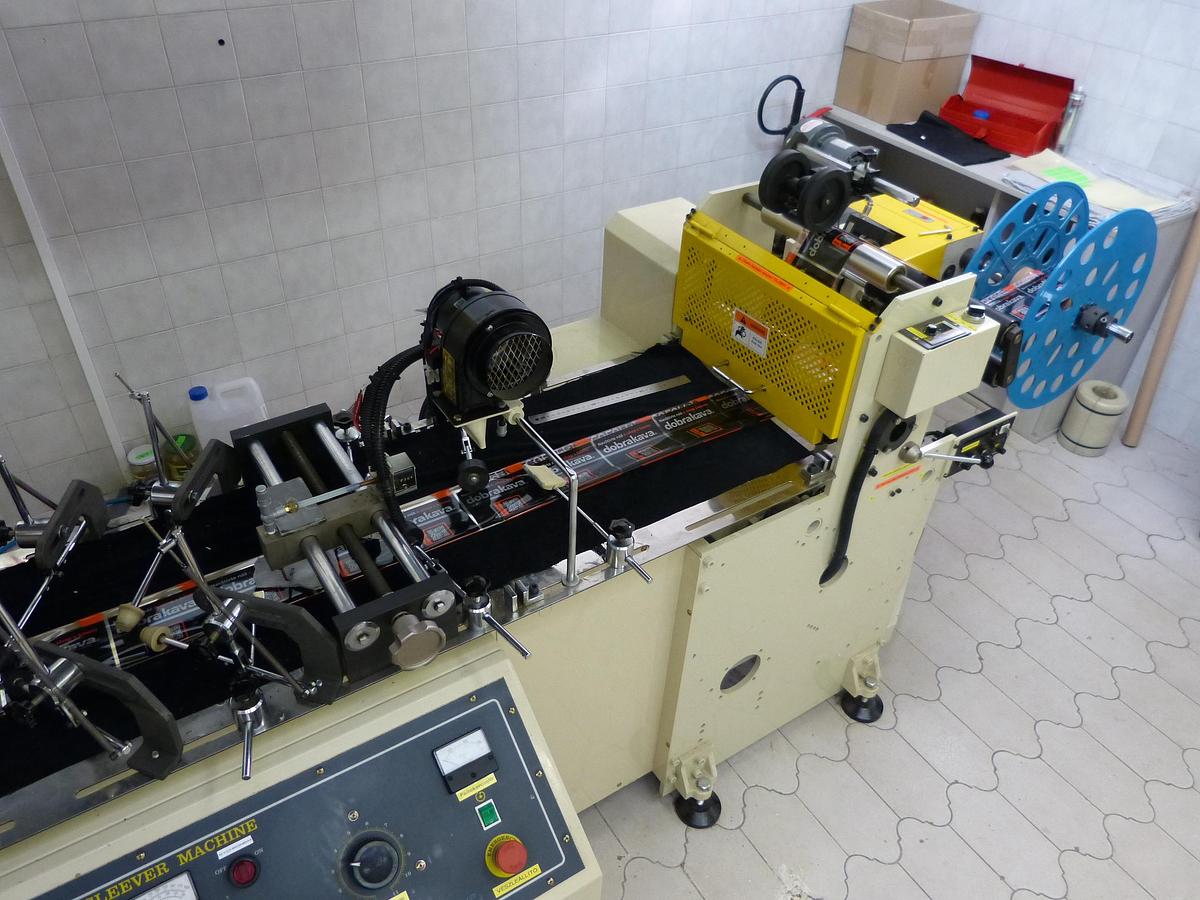

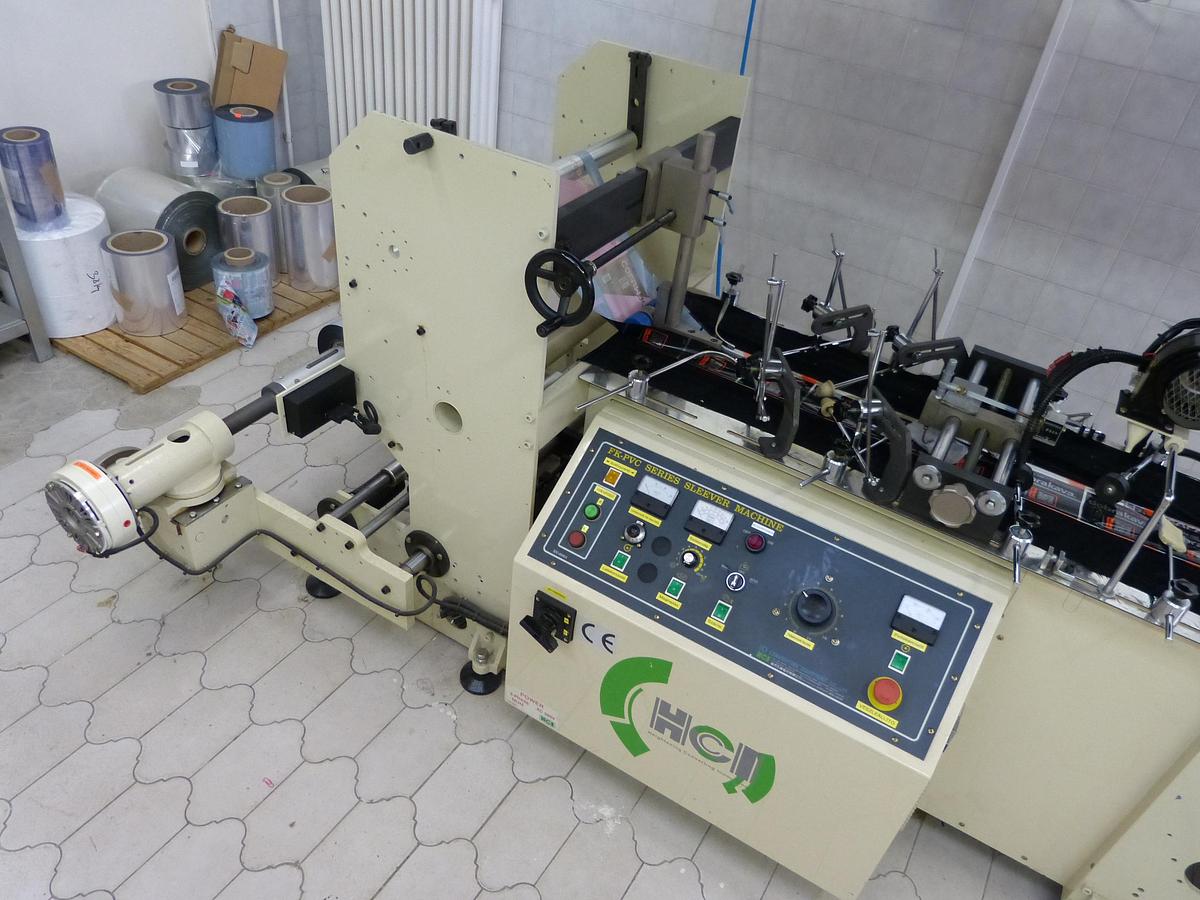

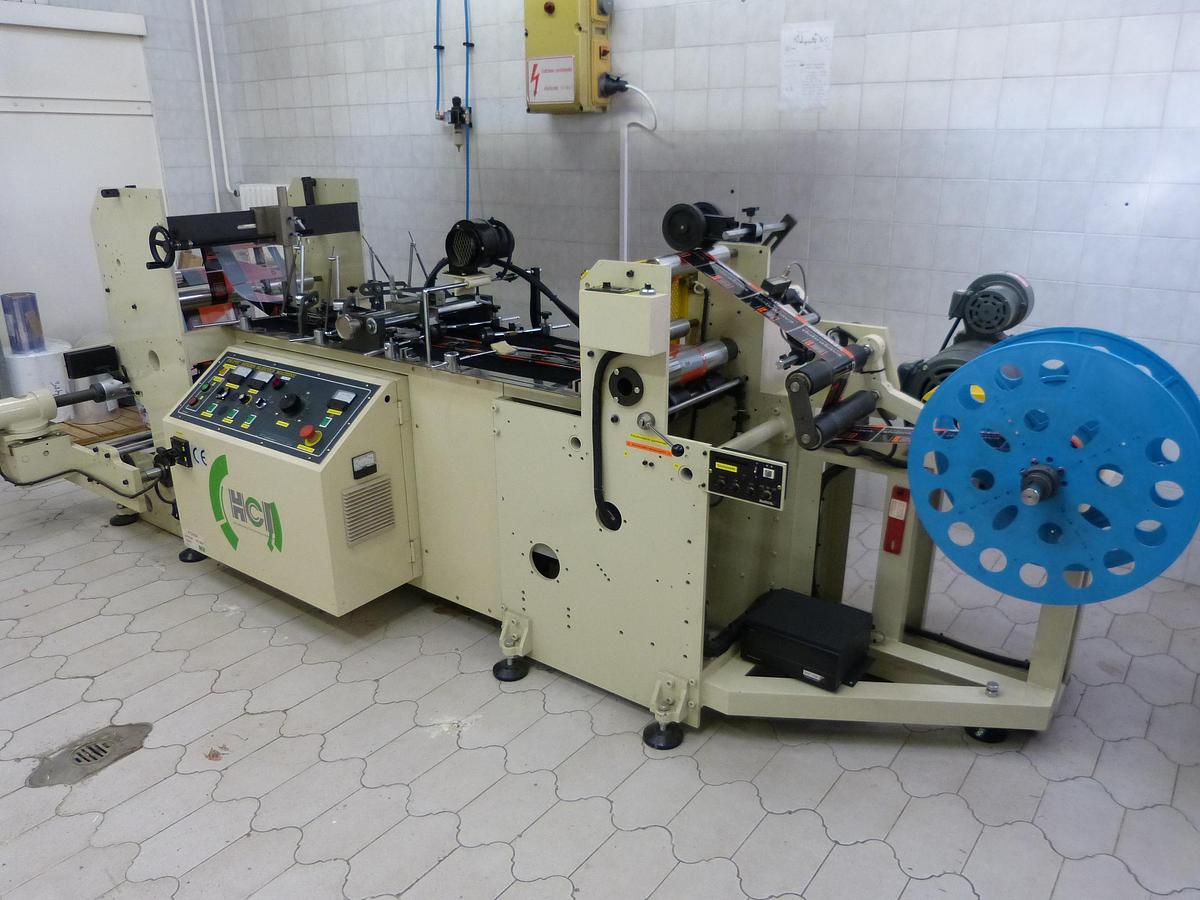

2014 HCI Shrink Sleeve Seaming Machine FK-250 PVC

HCI SHRINK SLEEVE SEAMING MACHINE

FK Series: the most economical investment for producing centre glue sealing of PVC shrink labels

Simplified design, easy to operate and maintain

Unwind

Swing out and floating type unwind stand with 3” air shaft

Single operator is required to manipulate and load the parent roll

Main drive AC motor provides variable speeds to accommodate a variety of materials

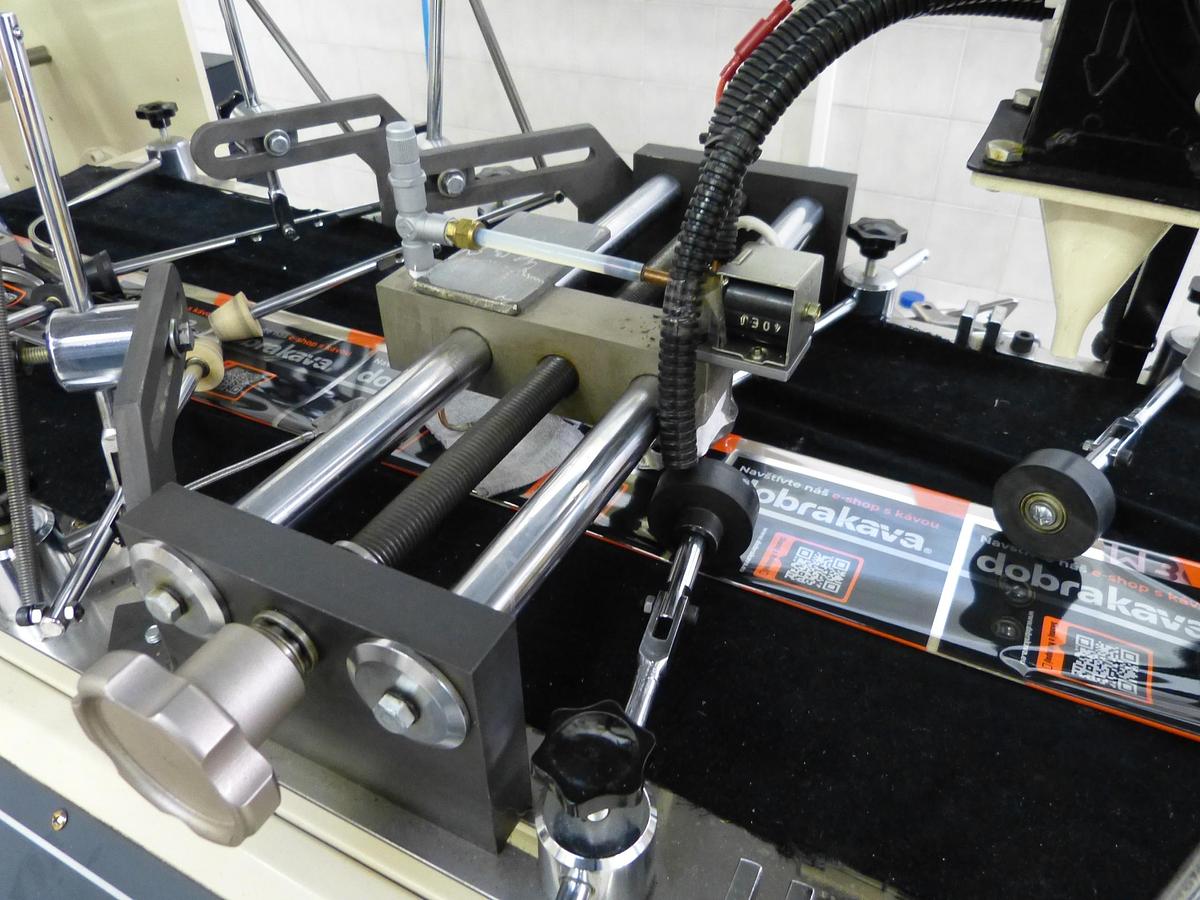

Glue sealing

Equipped the glue feeding adjacent magnet valve and flow quantity regulator

Accurate width is achieved by using the shrink label forming plate

Equipped with blower for drying the solvent faster also increasing the production speed

Rewind

TQ motor provides the stable winding tension

Cantilevered five claw coreless winder provides the faster roll changeover

Specification FK250 PVC shrink label

Material width: 60-250mm

Material diameter maximum: 450mm

Unwind inner diameter: 76mm, 3”

Tube width: 25-250mm

Rewind diameter maximum: 700mm

Rewind core inner diameter: 300mm 5 claw coreless

Mechanical speed: 0-100m/min, 200 optional

Machine was actually commissioned in 2015 and had low utilisation
