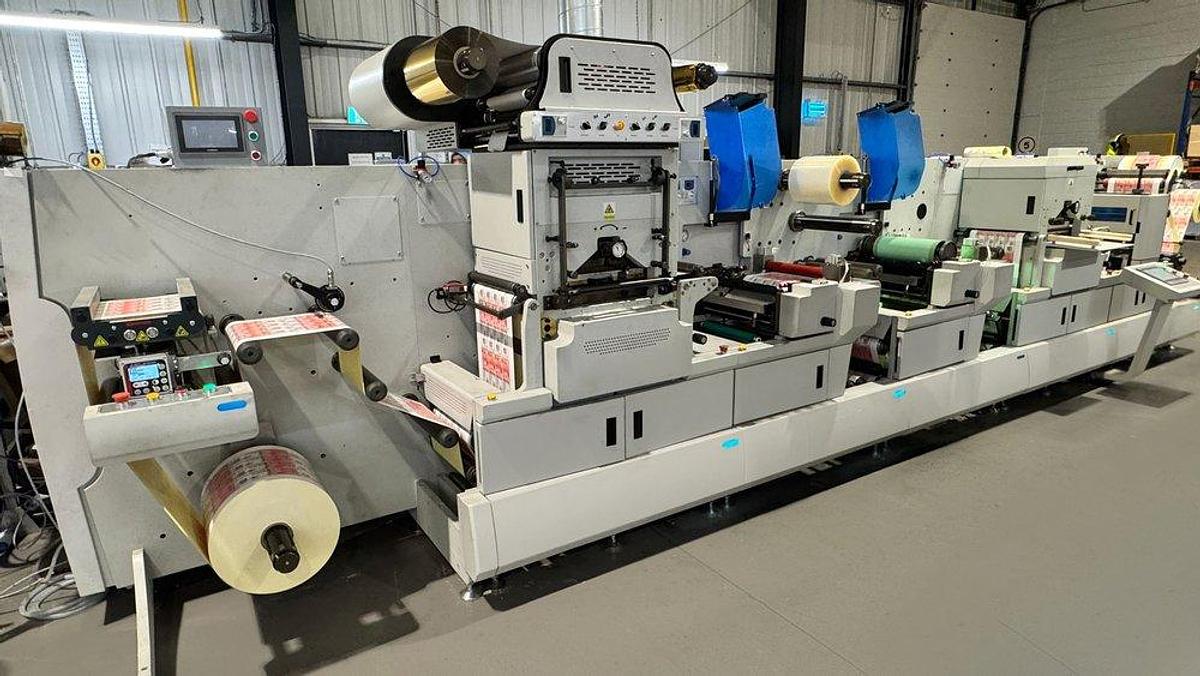

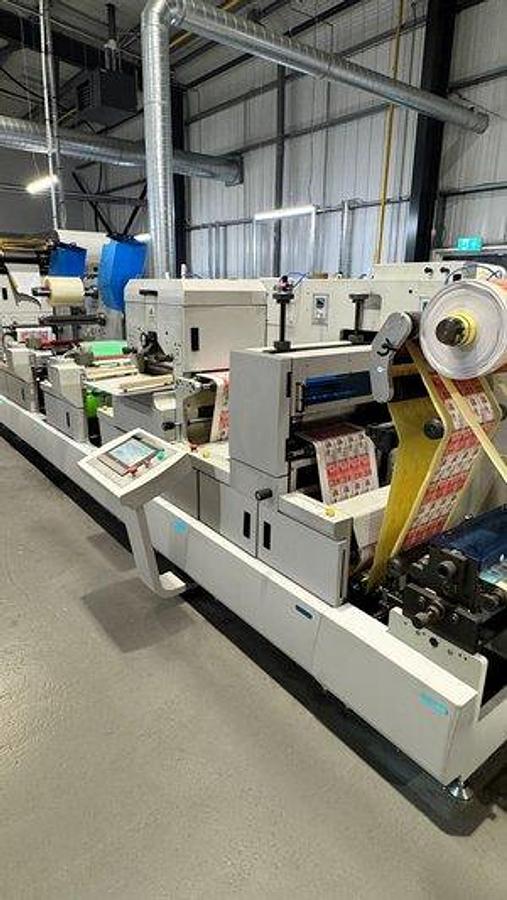

2021 Berkeley Signal SRD-SX380 Inline Digital Finishing machine

Berkeley Machinery Signal SRD-SX3280 Inline Digital Finishing machine

Maximum Material Width: 380mm (14.9”)

Maximum Converting Width: 370mm (14.57”)

Maximum die-cutting Width: 370mm (14.57”)

Maximum die-cutting Length: 370mm (14.57”)

Description:- To generate further converting solutions on a pre-printed reels of material with the following specification.

Maximum Unwind Diameter: 31.5” (800mm)

Top Rewind Diameter: 23.6” (600mm) or

Bottom Rewind Diameter: 31.5” (800mm)

Ground Helical Gears: Hardened

Mechanical Speed: 394fpm (120m/min)

Machine power: 80kw

Full load amps: 210

Power supply 380V +(-) 10%, 3 phase, 50/60Hz

UV power: 12kw

Full load amps: 30

Lubricating System: Automatic

Control Panel: In the front of the Press

Air Pressure: 100PSI (0.6Mp)

Substrate: 50-250gsm – paper

20-50micron – film

Print Registration: ±0.15mm

Full Rotary Print Speed: 120m/min

Full Rotary Die-Cutting

Speed: 120m/min

Semi-Rotary Print Speed: 60m/min

Semi-Rotary Die-Cutting

Speed: 60m/min

Cold Foil Unit Speed: 60 to 80m/min (Subject to the material and adhesives used)

Hot Foil Stamping Speed: 100 imp/min

Hot Stamping Register: ±0.15mm

Flat Die-Cutting Speed: 400 imp/min(120m/min)

Flexo-Plate Thickness: 1.14mm (or specify)

Flexo-Adhesive Mounting

Tape Thickness: 0.38mm (or specify)

Flat Die-Cutting Plate Thickness: Universal gauges (Variable adjustment to Die-Plates)

1 x Unwind Reel Stand for Quick loading of reels (up to 800mm dia) on 76mm Air Shafts to Unwind clockwise and anti-clockwise

1 x Electronic Web Guide for accurate guiding of material

1 x Infeed with servo registered drive to interface with other units through converting register

1 x Full and Semi-Rotary servo drive print station including Water chilled impression cylinder

- The Flexo print station will run Full Rotary with matching print station and also Semi-Rotary with unequal print cylinders.

- Will print, coat and spot varnish in register

- Including 1 x Print Cylinder 140T

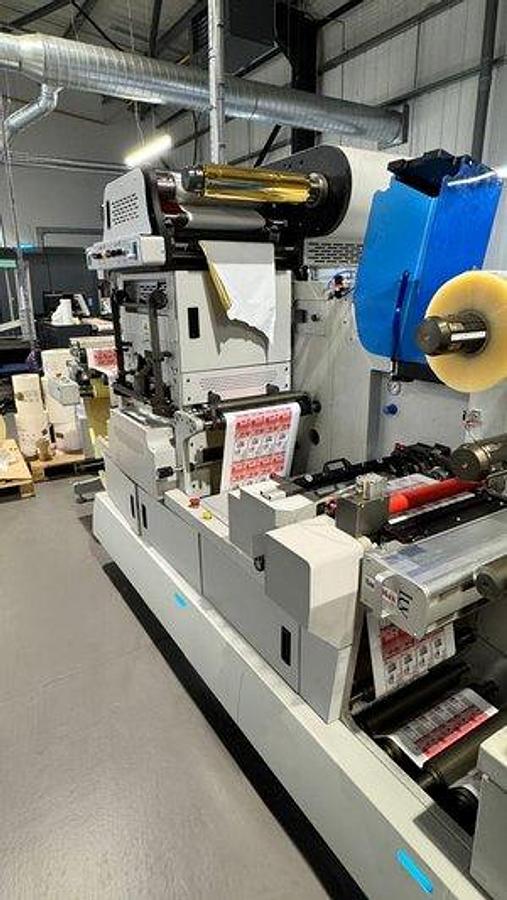

1 x Cold Foil and lamination Unit (Foil Unwind and Rewind)

1 x Full rotary flexo print station (including Mercury UV)

1 x SureMax MV (Mercury Lamp) including Universal Drive to allow for future installation or replacement with LED UV Lamp (no need to replace the drive)

- MC UV Lamp: 7.5kw

- LED UV Lamp: 3.2kw

1 x Servo Drive – High Speed Flow type Hot Foil stamping unit and Die-Cutting with heated platen with temperature control, linear stamping and cross stamping (to allow for multi-coloured Hot foil to applied in 1 pass) Die-Cutting can also be done on this unit.

1 x Servo Drive High Speed Flow type Flat Die-Cutting unit

1 x Slitting Station with 8 Rotary knives

1 x High Speed Snowball Waste Rewind unit

1 x Outfeed Unit

2 x Independent Product Rewind shafts (Dual rewind)
