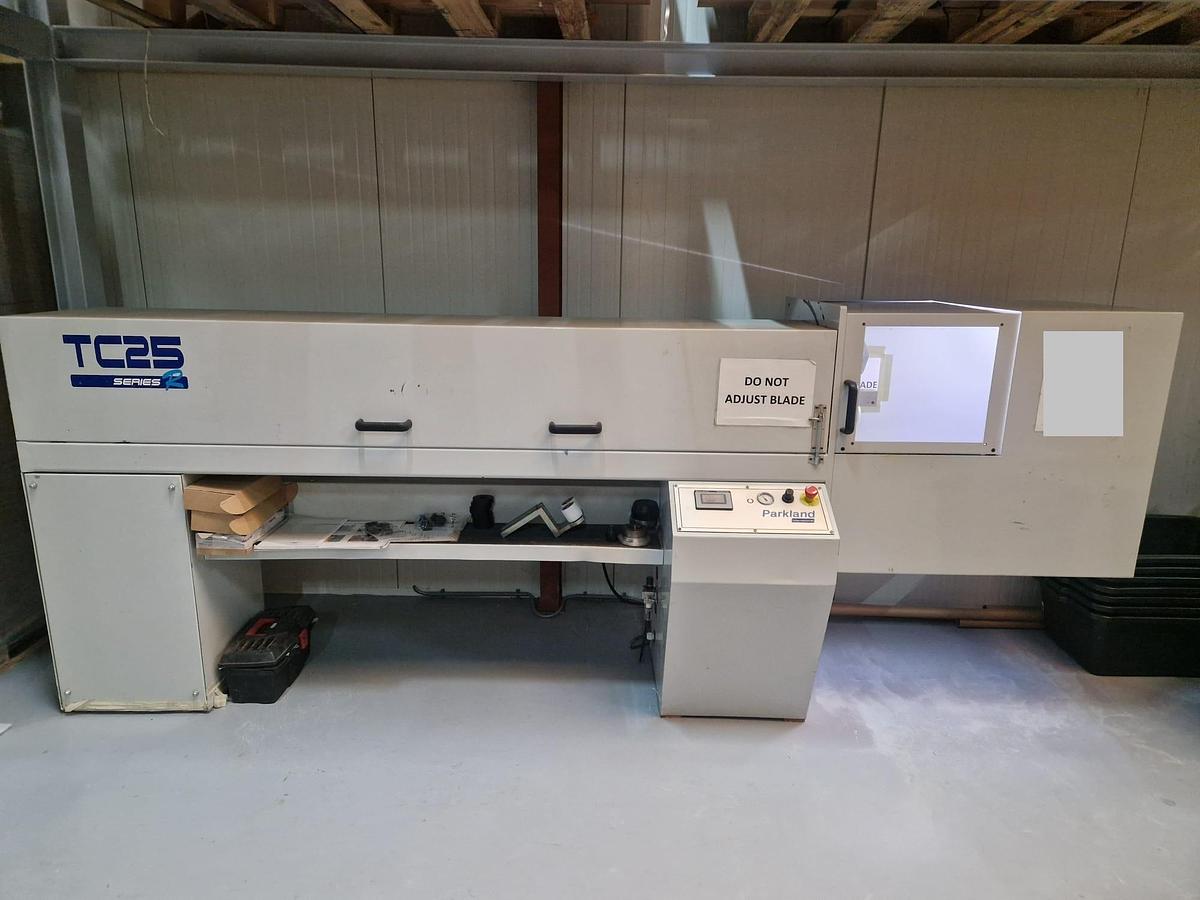

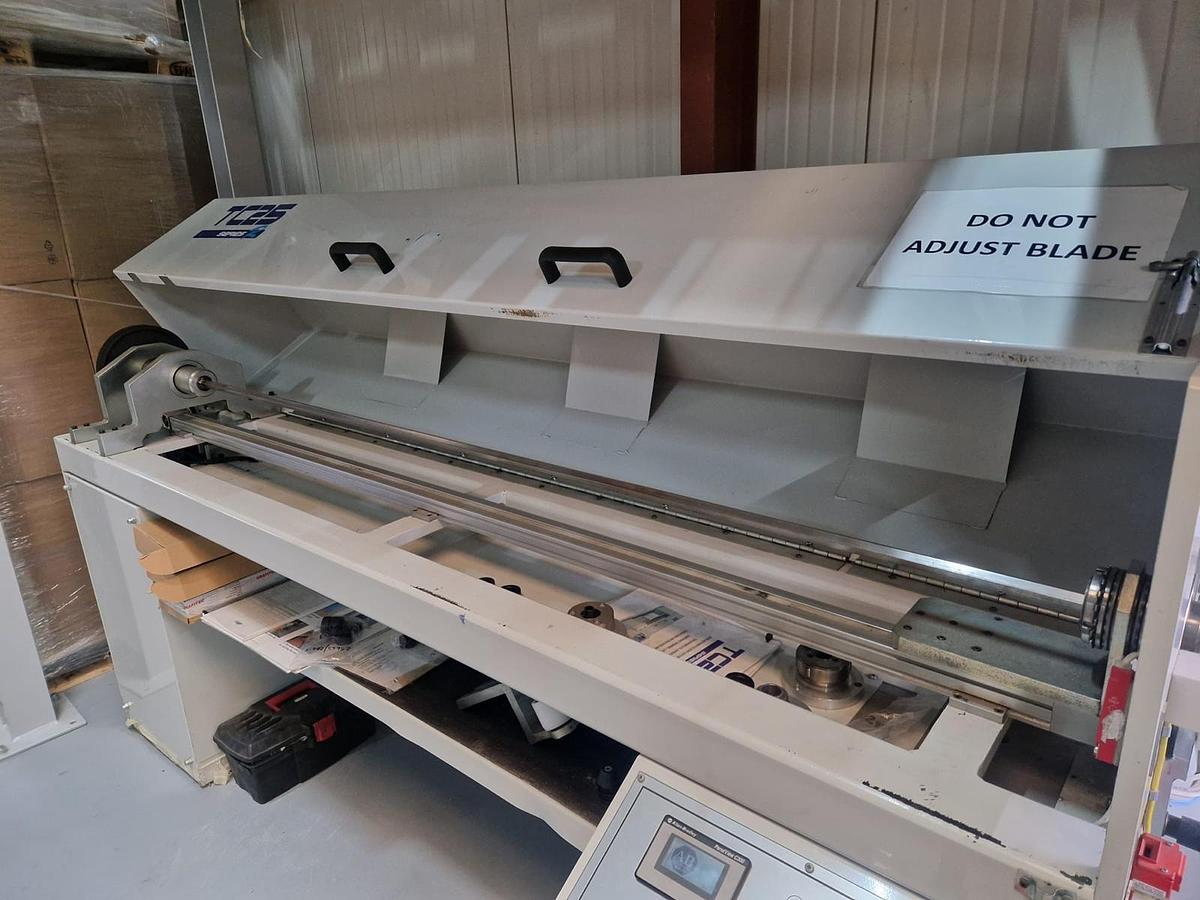

2013 Parkland TC25 R Series Semi-Automatic Core Cutter

Product Description:

The Parkland TC25 Series R is a semi automatic machine that is ideal for customers looking for high quality, accurate finish with a minimum amount of operator input. An entry level automatic machine that has quick and easy settings for different core diameters and wall thicknesses, this is ideal for the medium volume user.

Machine Specifications and Equipment:

Cores: 25, 40, 45, 76, 100, 152mm diameter

Parent cores range from 200mm (8″) – 2000mm (80′′) long

Core sizes from 25.4mm (1″) – 152.4mm (6″) ID

Wall thickness 20mm (3/4″) cardboard

Quick and simple core diameter change

Accurate cutting length with indexing accuracy of ± 0.2mm

CE Marked to the latest Health & Safety standards

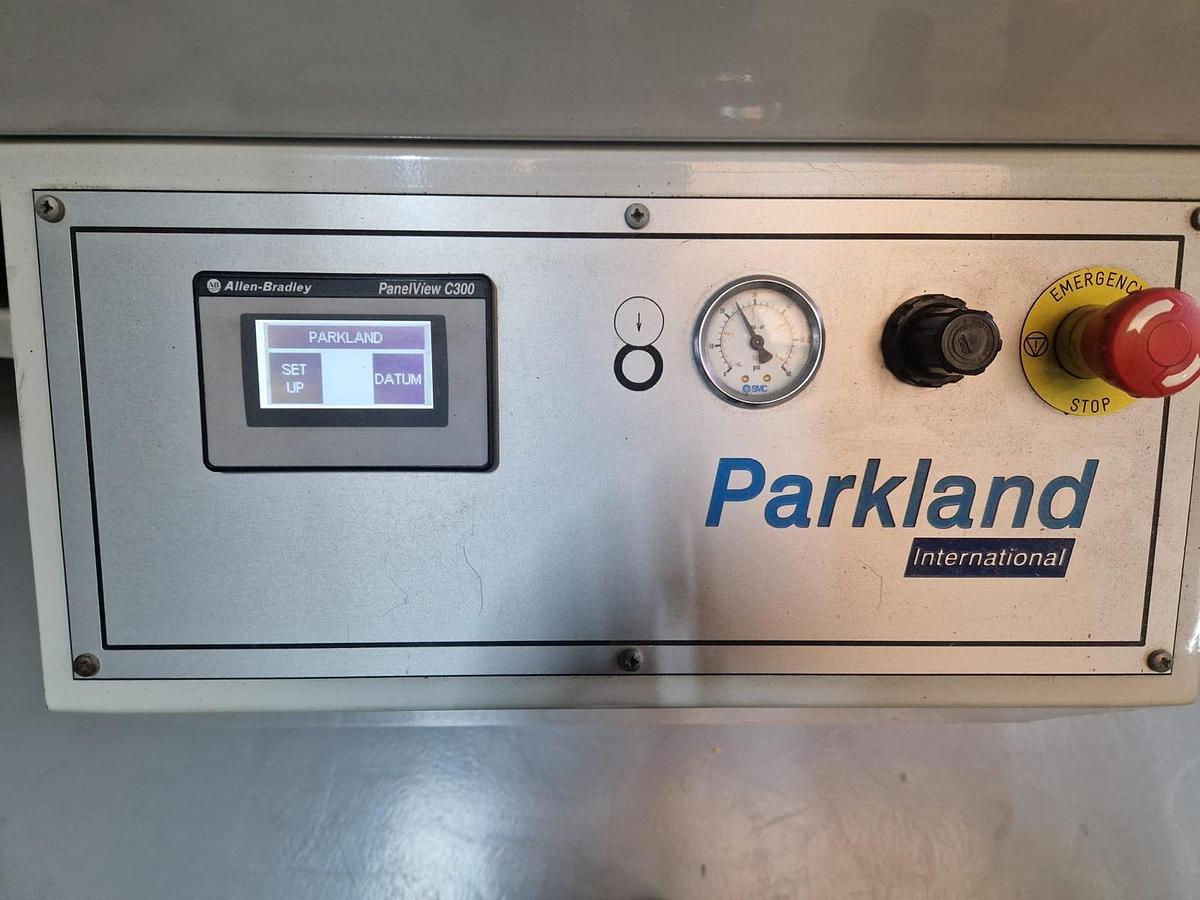

HMI colour touch screen

Rockwell Automation worldwide support network

Automatic parent core measuring facility

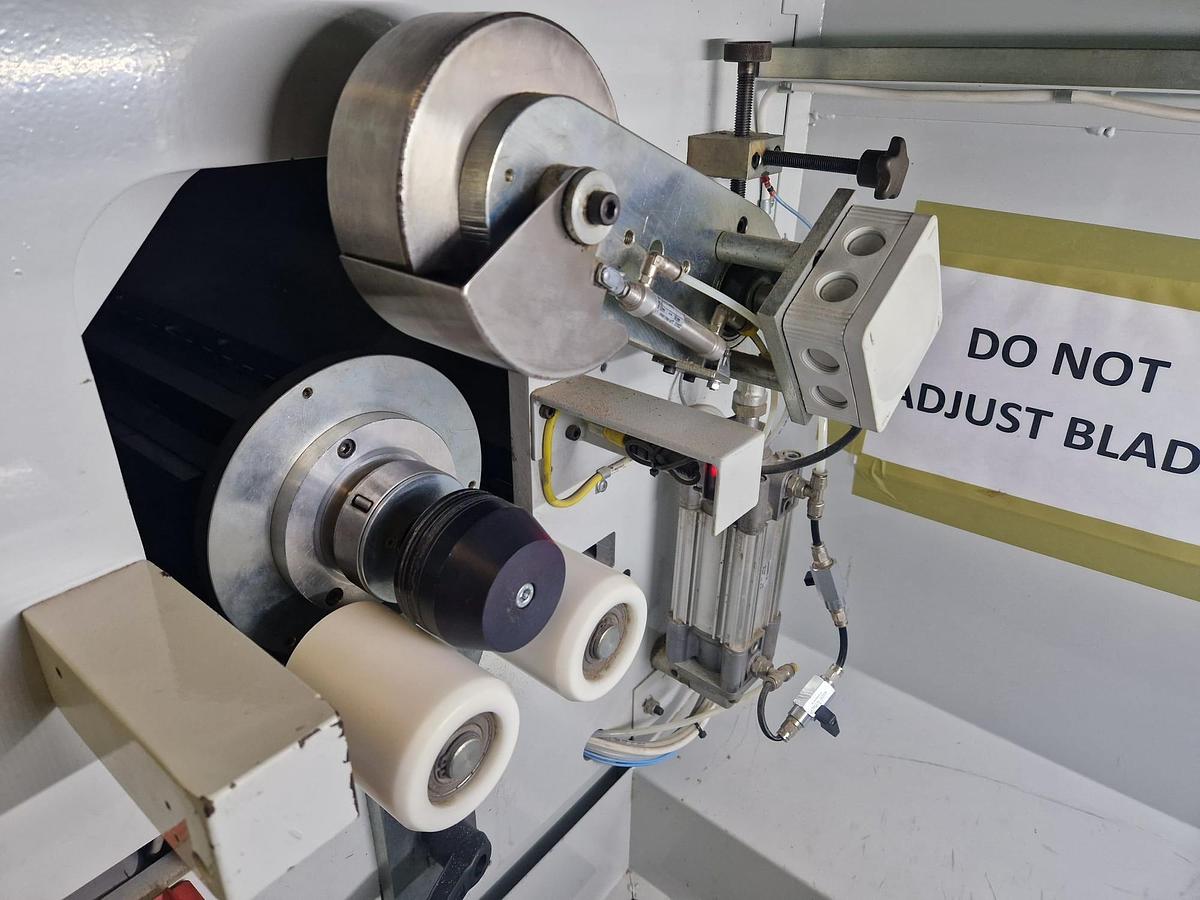

Mechanical torque chuck for gripping the core

Electrical Supply-380/440v/50/60Hz/3 phase, neutral and earth

Power Supply 16amps / phase

Air Supply-80psi / 5.5bar

Air Consumption – 1cfm (1.7cu.m/hour)
