2017 Colines Cast Film Extrusion Lline

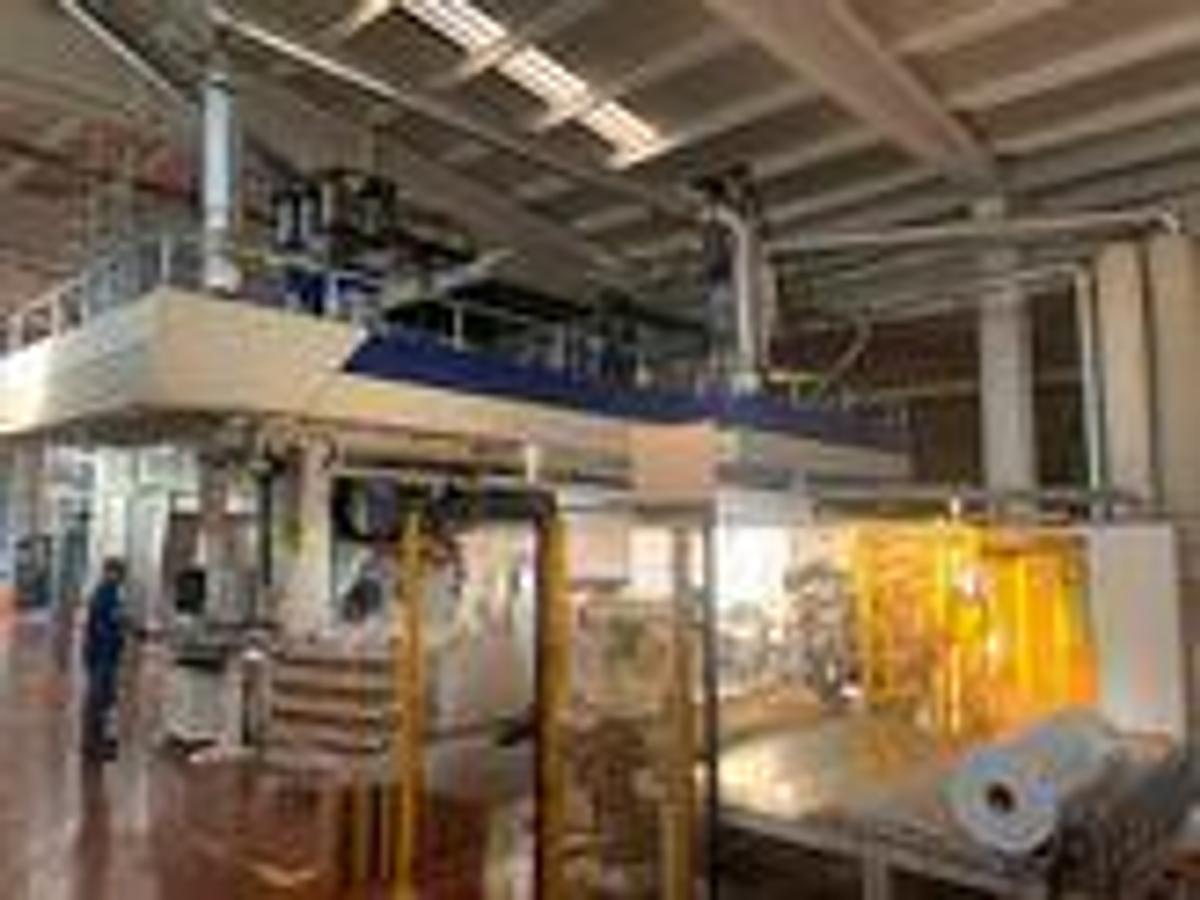

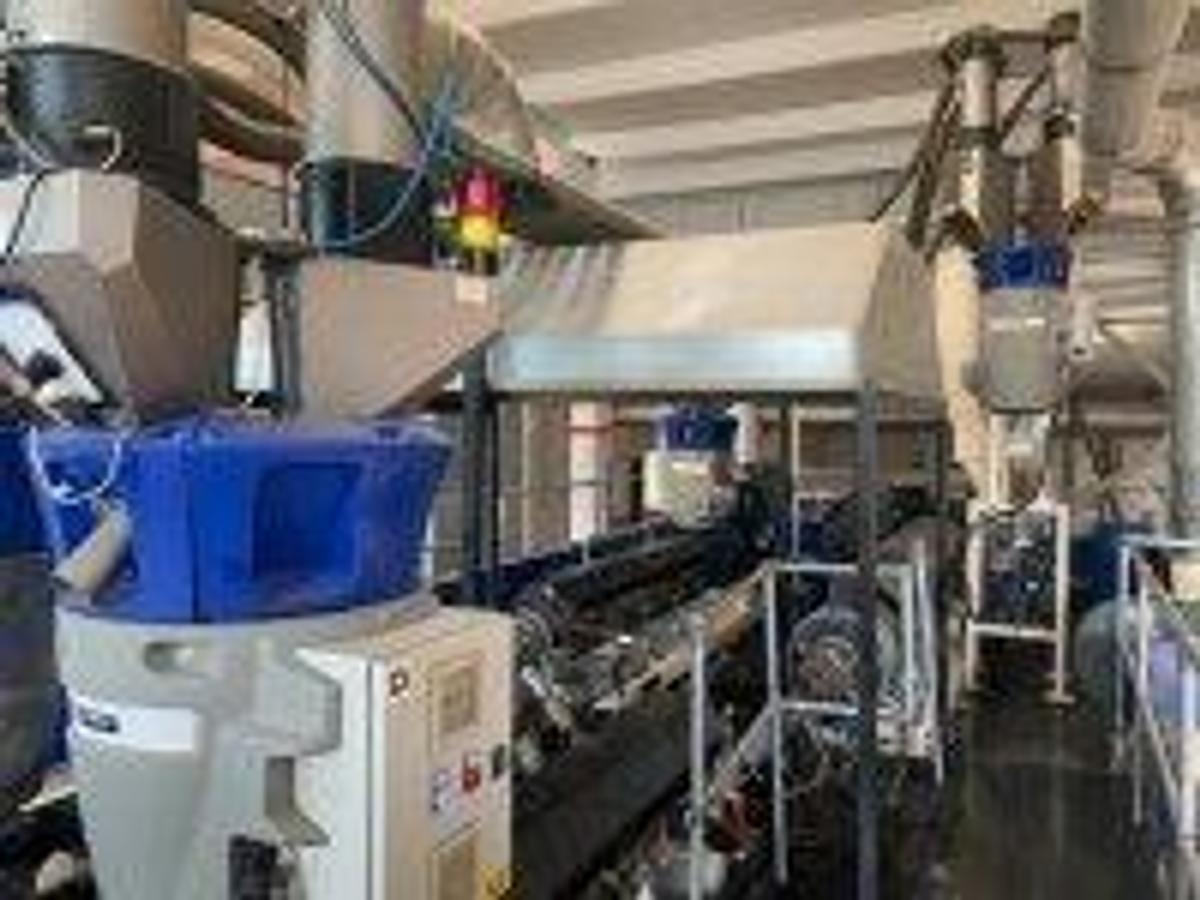

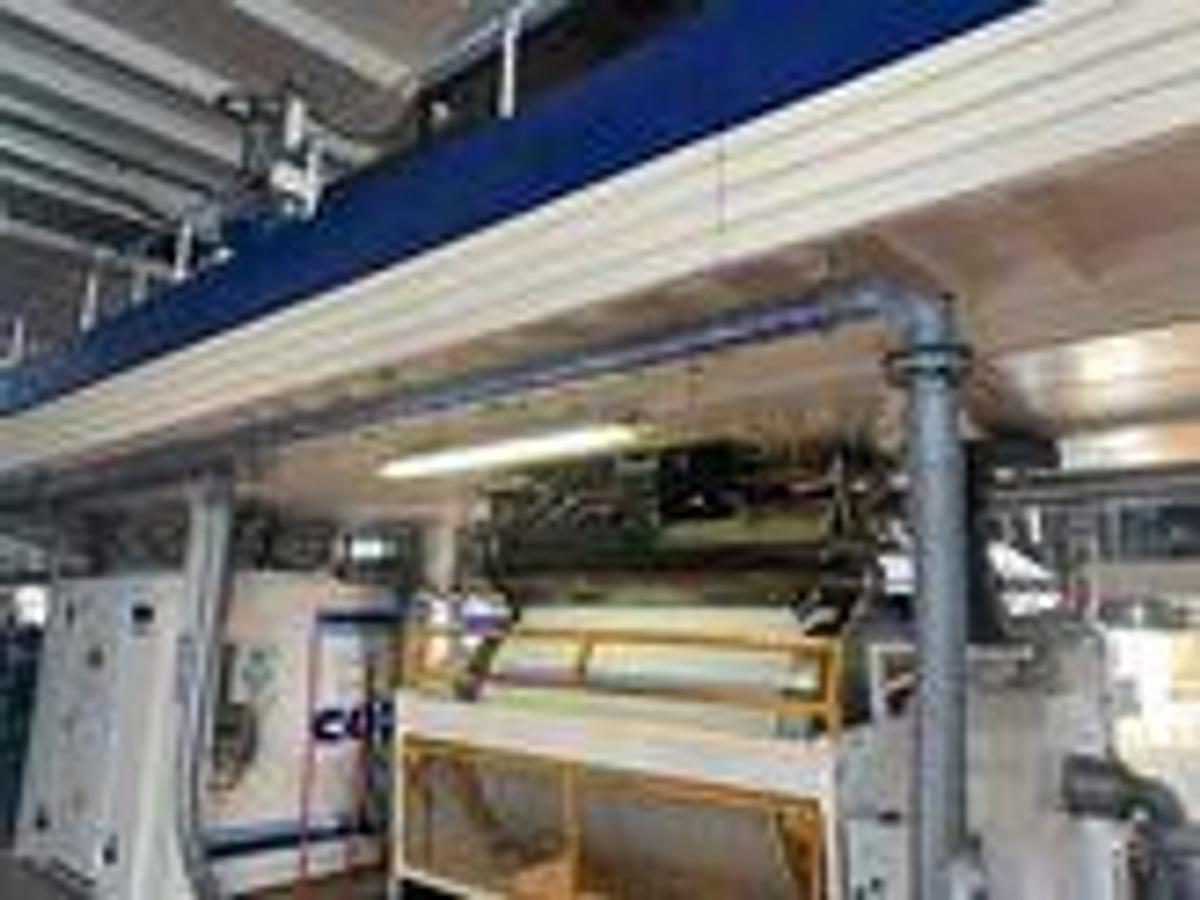

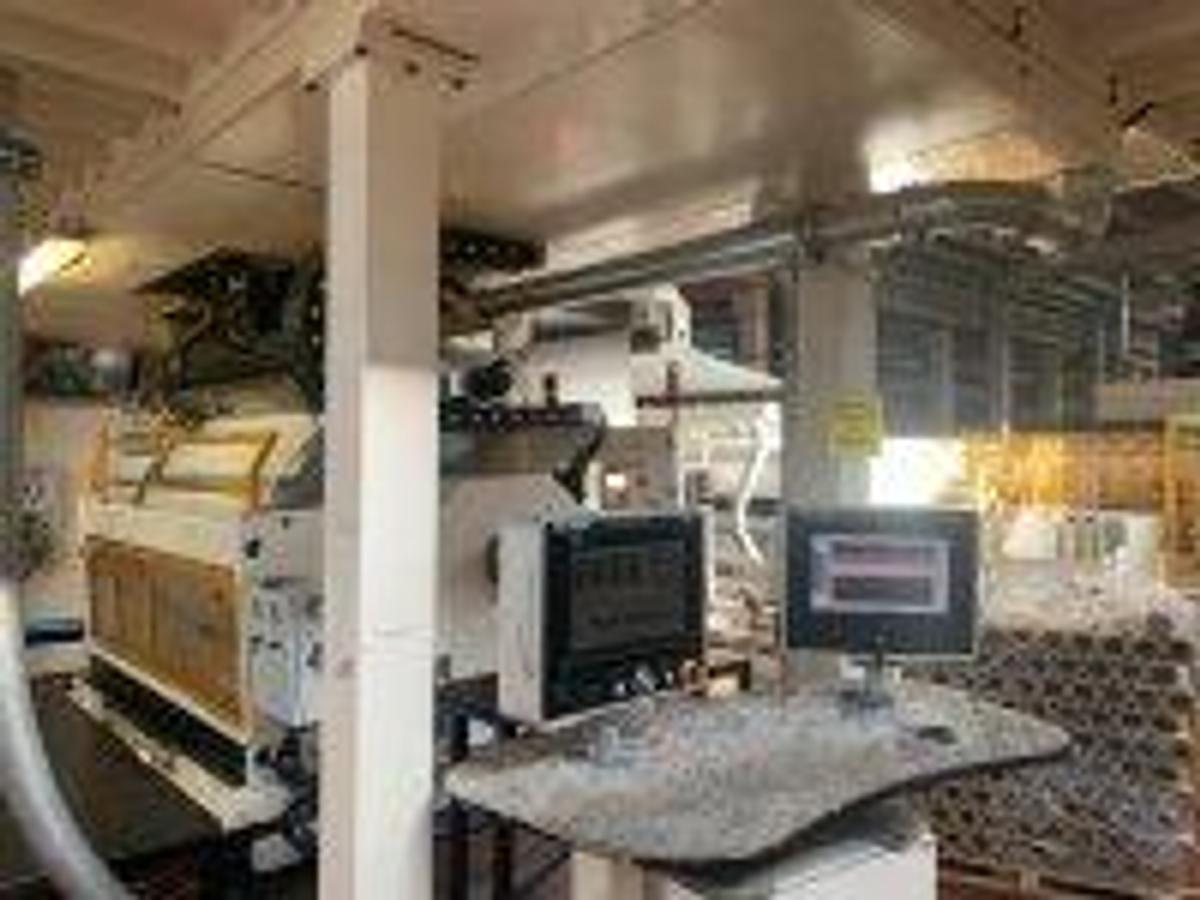

COLINES CAST FILM EXTRUSION LINE

Number of layers: 5

Film structure: A C B C D

Material: Stretch film LLDPE

Film width: 1500mm

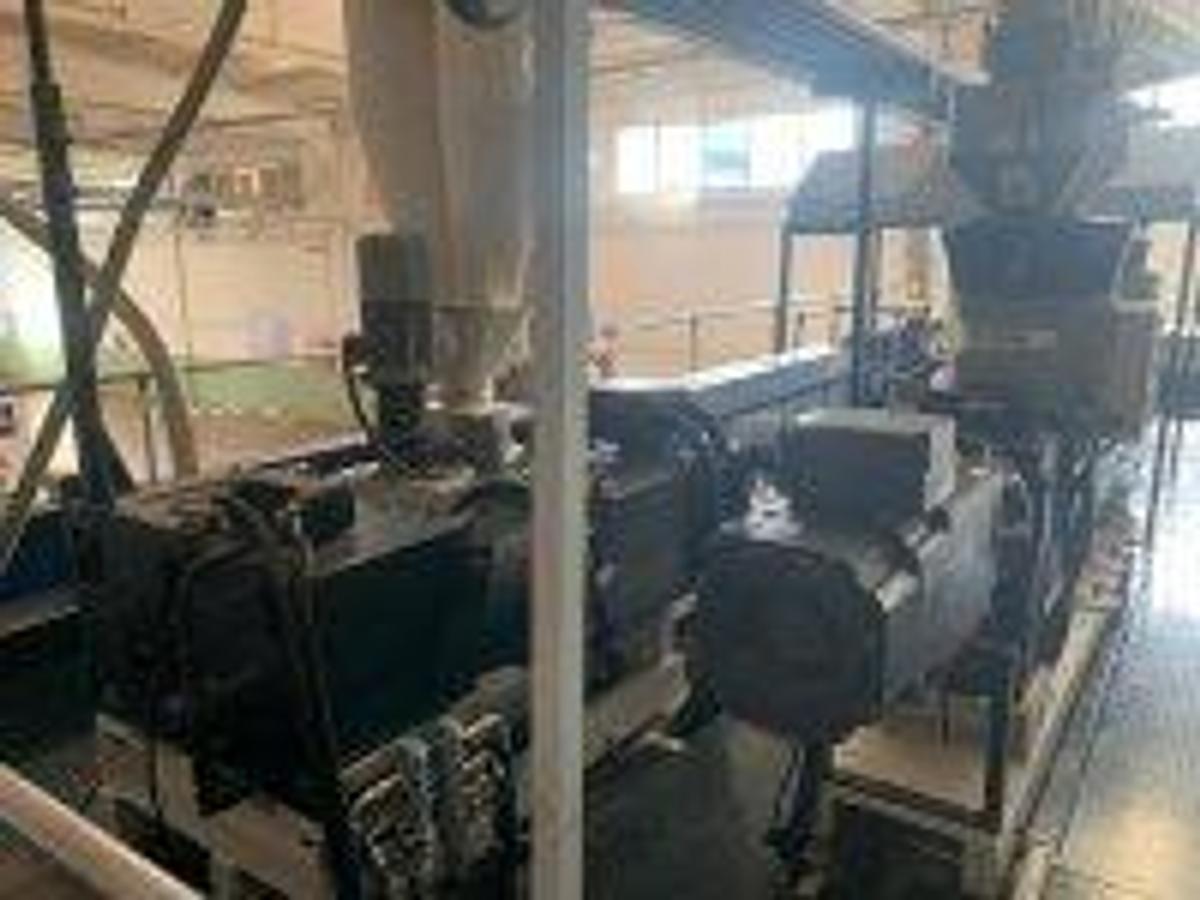

Extruder 1 layer: A screw diameter 1: 55/34mm

Extruder 2 layer: B screw diameter 2: 55/34mm

Extruder 3 layer: C screw diameter 3: 120mm

Description 3: Suction device for trimmed edge with bigmouth with milling and transport complete with refeeding system placed in the extruder 120mm

Extruder 4 layer: D screw diameter 4: 55/34mm

Thickness control: Electronic system Xray

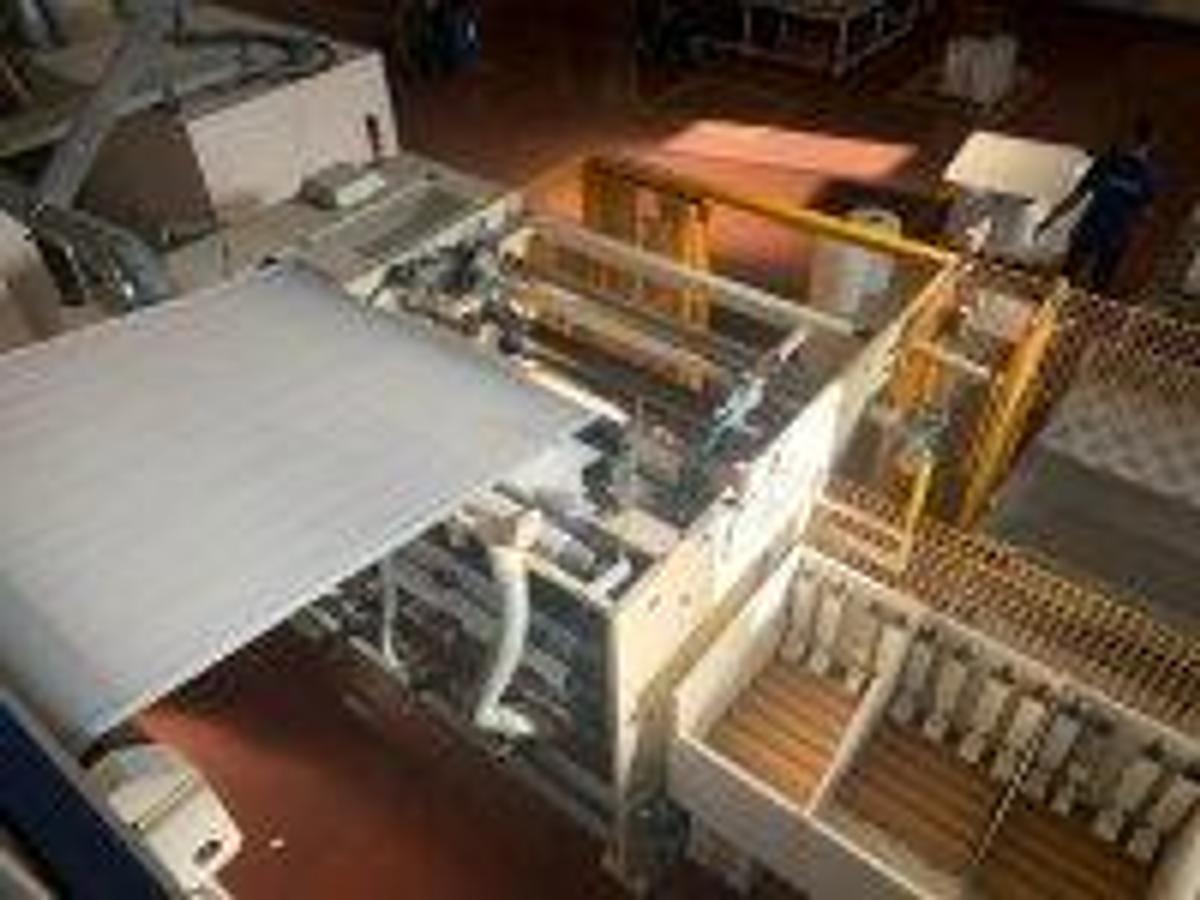

Rewind: automatic rewind Allspeedy III, 3 shafts turret winding unit

Thickness: 10-35my

5 layers coextrusion cast film line for the production of stretch film for hand, machine and jumbo rolls

Rolls format: 3 x 500mm, 3 x 450mm, 2 x 750mm, 6 x 250mm, 5 x 300mm

Flat extrusion die: Cloeren 2050mm
