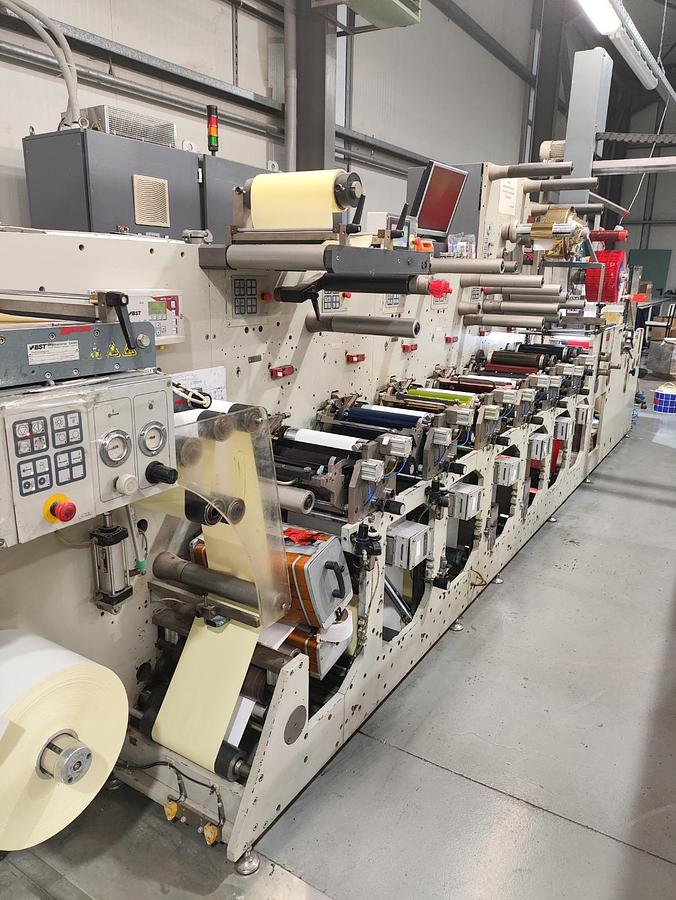

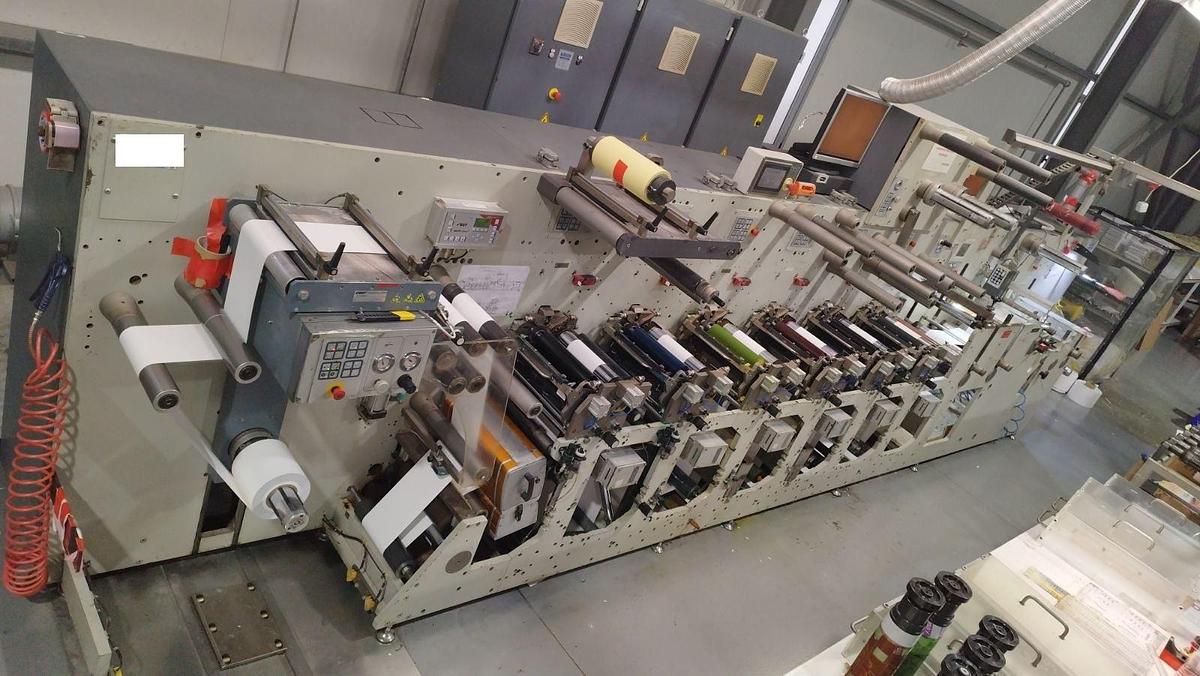

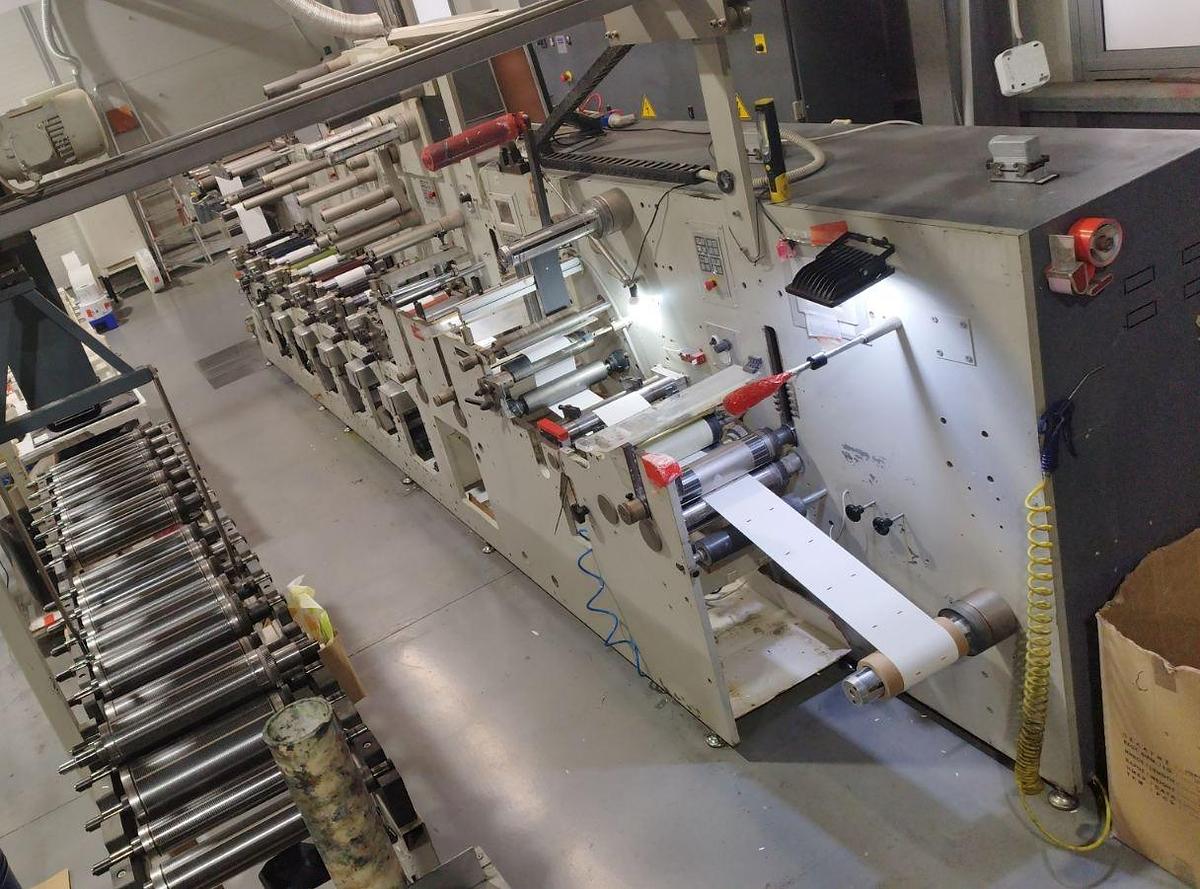

2006 Gidue 290 6 colour UV Flexo Label press

Max. format: 280mm / 11″

Min. format: 110mm / 4″

6 Flexo Printing Units

• Printing on Adhesive
• Printing on Liner

Antistatic Unit

Hot and Cold Foil

Web Turn Camera with 2 monitors

3 Die Cutters with Roll Elevator

Unwinder 1016mm / 40″ with lift

Rewinder 900mm / 35″

Ceramic anilox rollers

6 Ink Tanks + 7 additional

6 Ink Rollers (for transfer) + 9 additional

6 Doctor Blade Systems + 4 additional

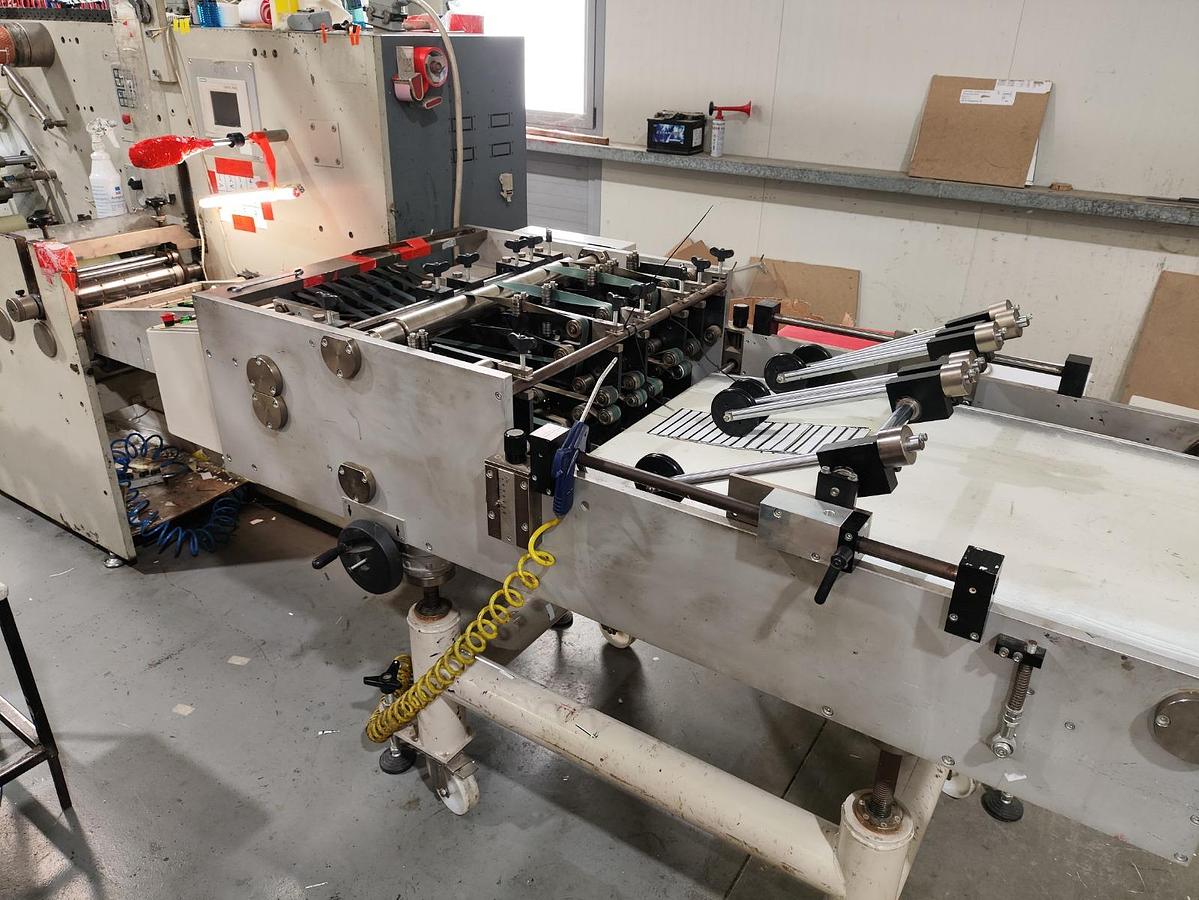

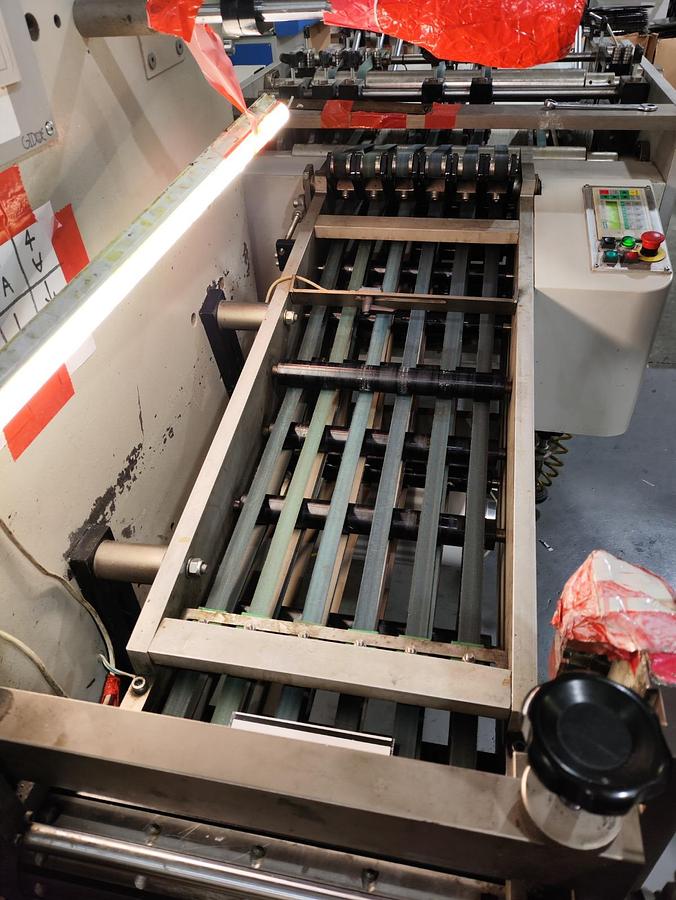

Die Cut Cylinders for sheeter: 1 Z96 with 8 Repetitions + 1 Z96 with 12 repetitions

2 Laminating Cylinders Z100

6 UV Lamps on board

Technical details:

 Flexoplate thickness 1.14mm / 0.045″

Substrate thickness 0.38mm / 0.015″

Printing Cylinders

Z68 x6

Z73 x6

Z76 x8

Z80 x8

Z83 x6

Z86 x6

Z88 x6

Z93 x6

Z96 x8

Z101 x6

Z104 x6

Z110 x6

Z120 x6

Z128 x6

Z134 x6

Z144 x6

Z155 x8

Die Cut cylinders

Z68 x3

Z73 x2

Z76 x1

Z80 x2

Z83 x1

Z86 x1

Z88 x1

Z93 x1

Z96 x2

Z101 x1

Z104 x1

Z110 x1

Z120 x1

Z128 x1

Z134 x1

Z144 x1

Z155 x1

Anilox Rollers

450-7 x3

400-9 x1

660-5 x1

800-4 x2

350-9 x1

400-8 x2

550-6 x1

800-5 x1

800-3.5 x5

800-4.5 x1

1200-2.5 x3

200-20 x1

300-10 x2

350-10 x1
