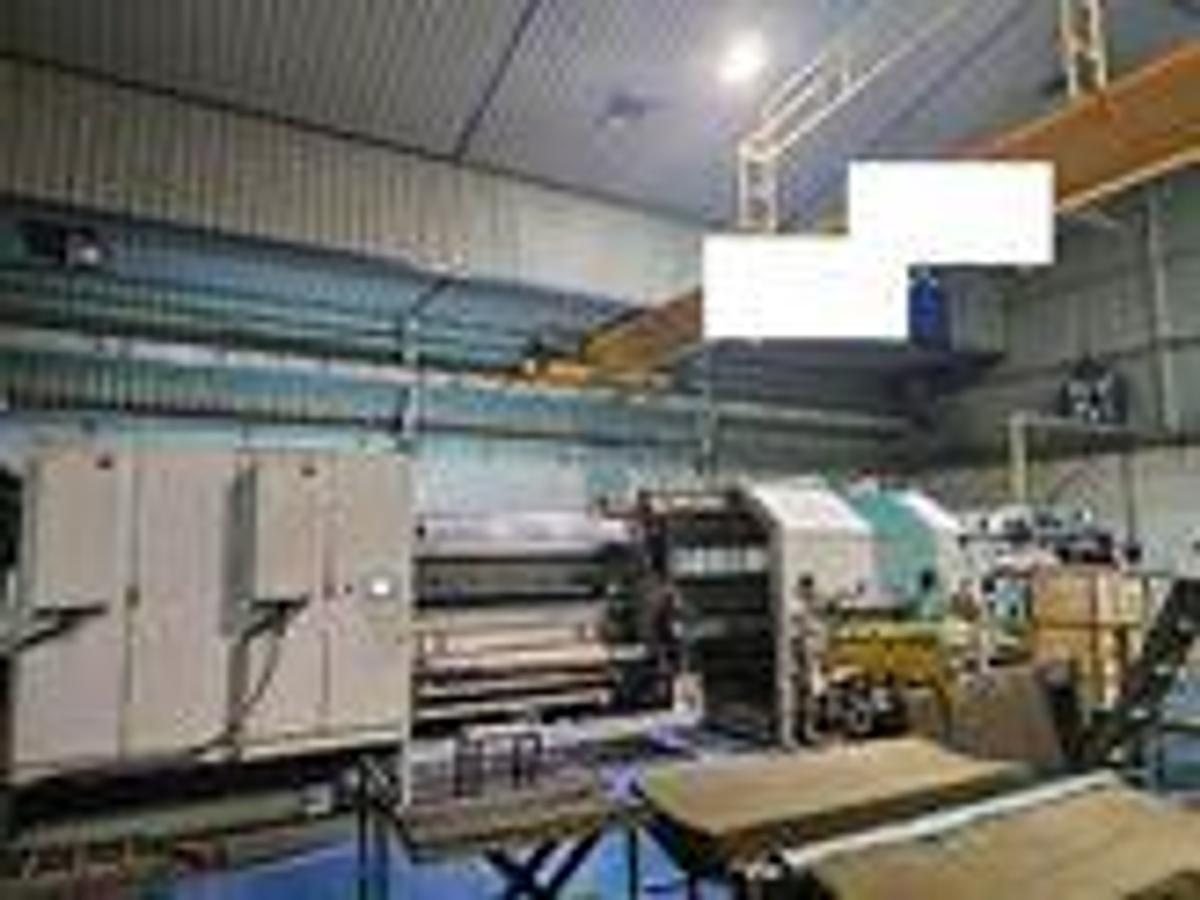

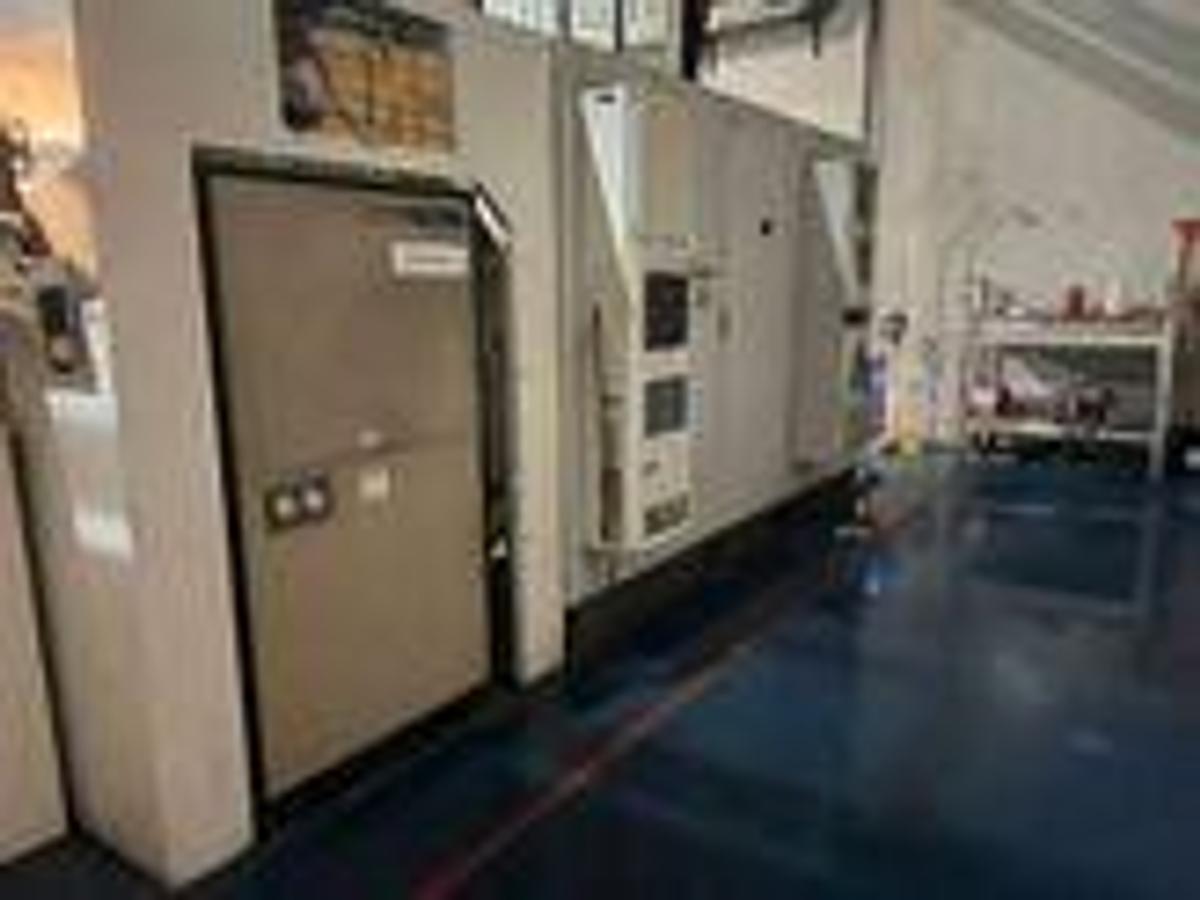

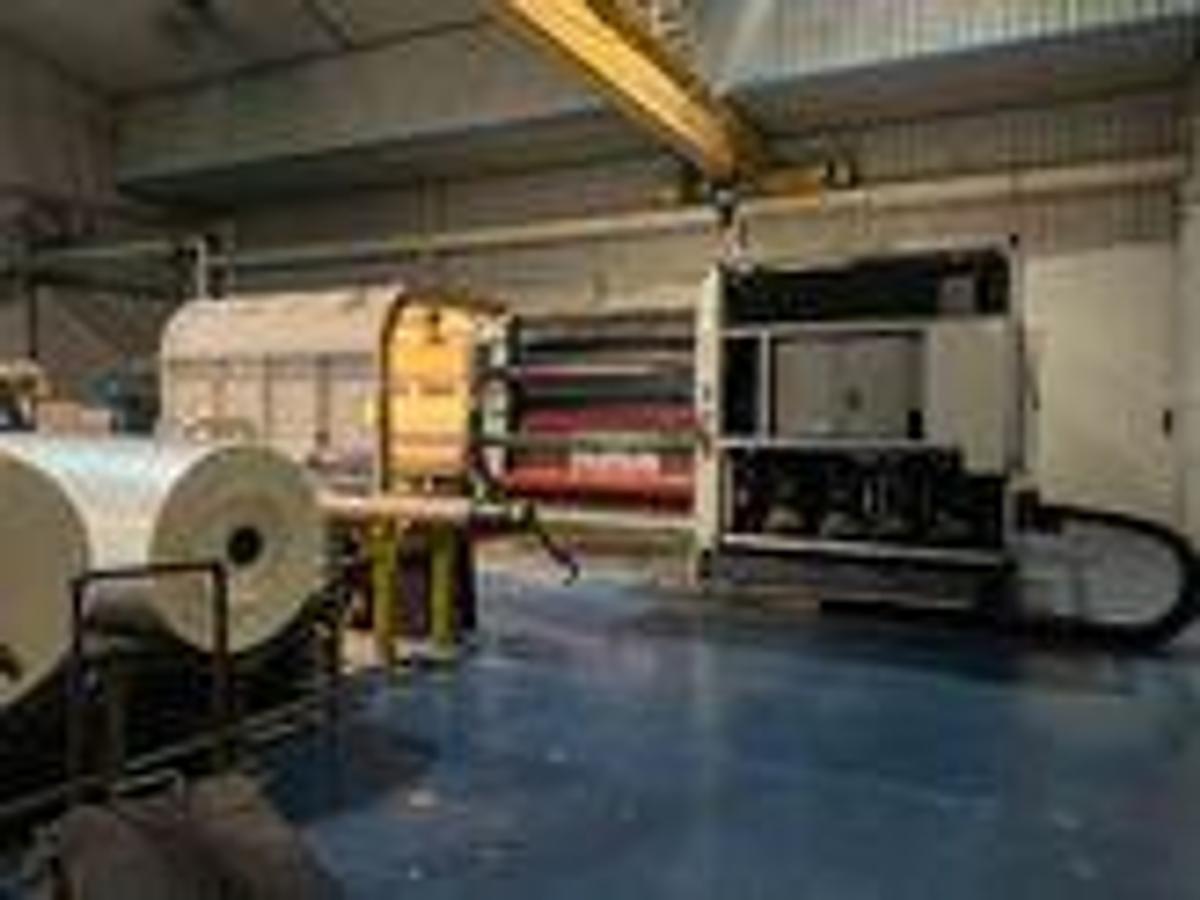

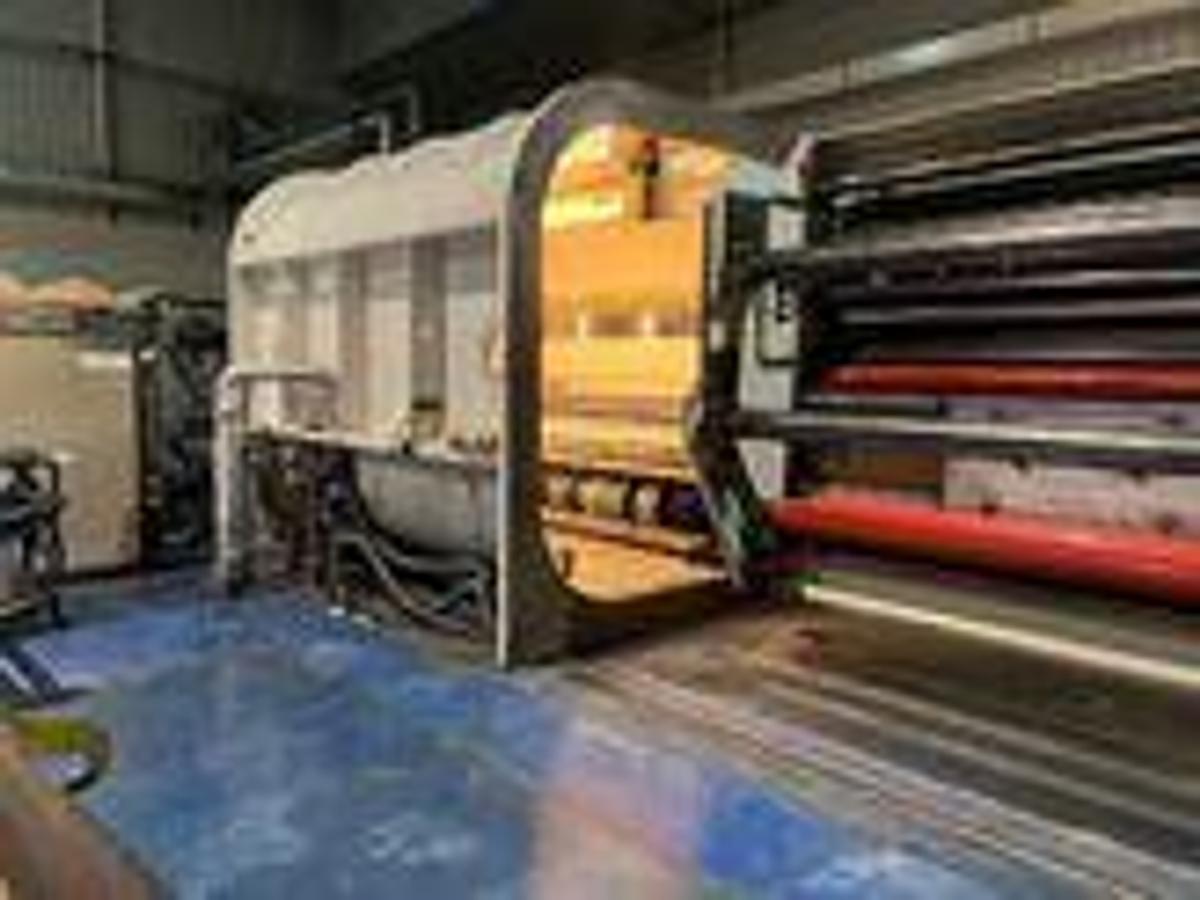

2012 General Vacuum Equipmebnt Metallizer Line

GENERAL VACUUM EQUIPMENT METALLIZER LINE

Working width: 2450mm

Materials: BOPP 10 to 50µm, PET 9 to 50µm, CPP 20 to 50µm, Nylon 12 to 50µm,  UPVC 20 to 100µm

Speed: 840m/min

Maximum diameter reel unwind: 1000mm

Maximum diameter reel rewind: 1000mm

Evaporation boots: 26

Evaporator source type: resistance heated intermatic size 150 x 30 x 10mm

Aluminum wire size and purity: 2.0mm, 99.8% pure

Evaporation zone operating pressure: 5.0 x 10-4mbar

Winding zone operating pressure: 2 x 10-2mbar, 2 x 10-1mbar

Pump down time, clean dry and empty: 5.0 x 10-4mbar in 5 minutes

Ultimate pressure after overnight pumping: 2 x 10-5mbar

Pressure rise test: 2.0 x 10-2mbar in first hour
