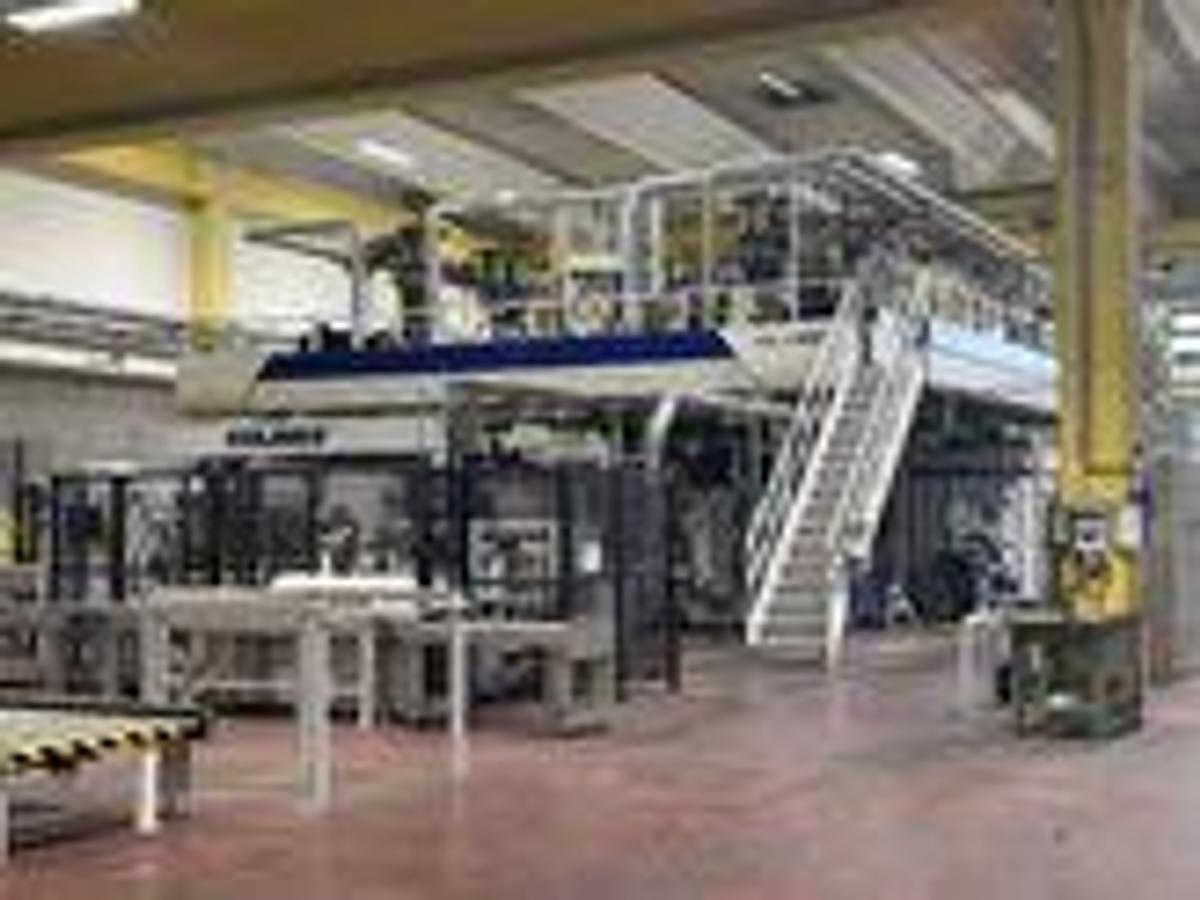

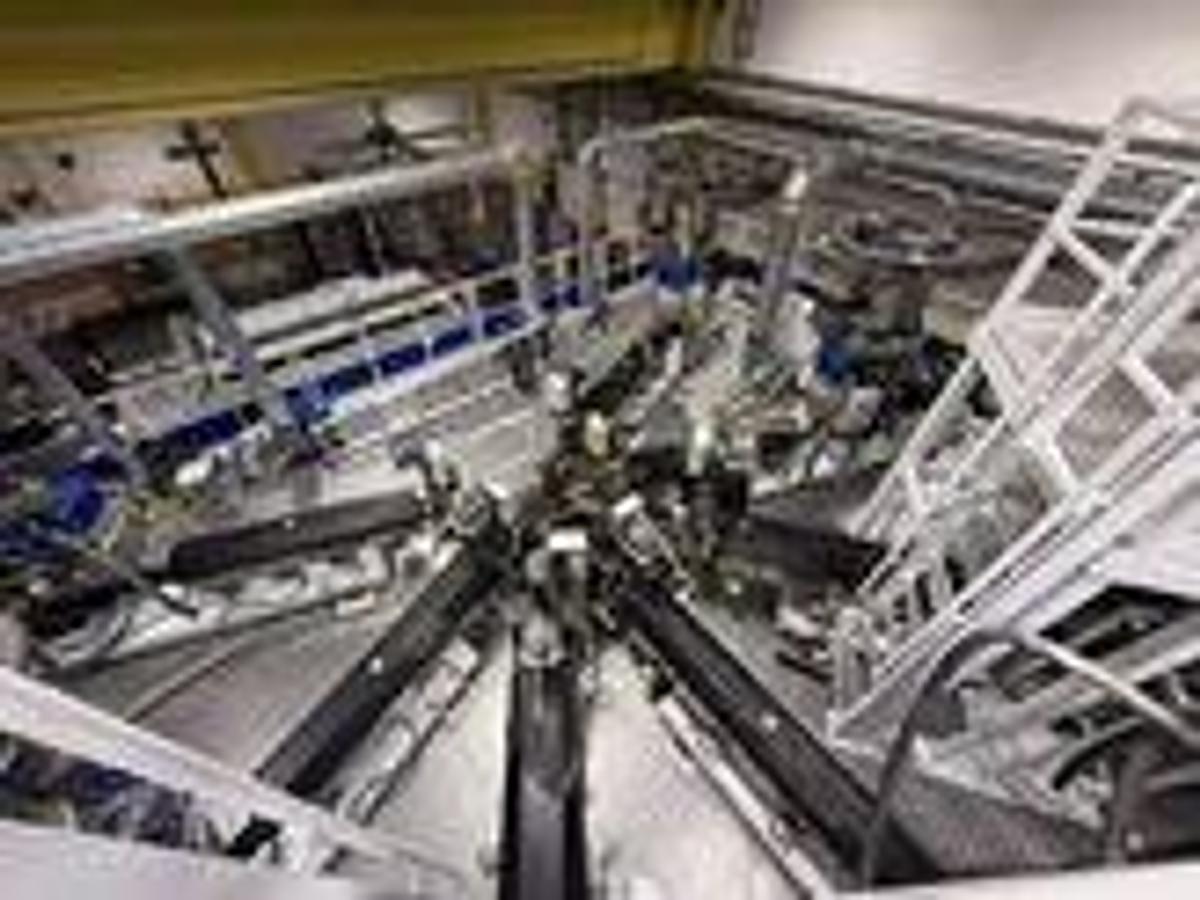

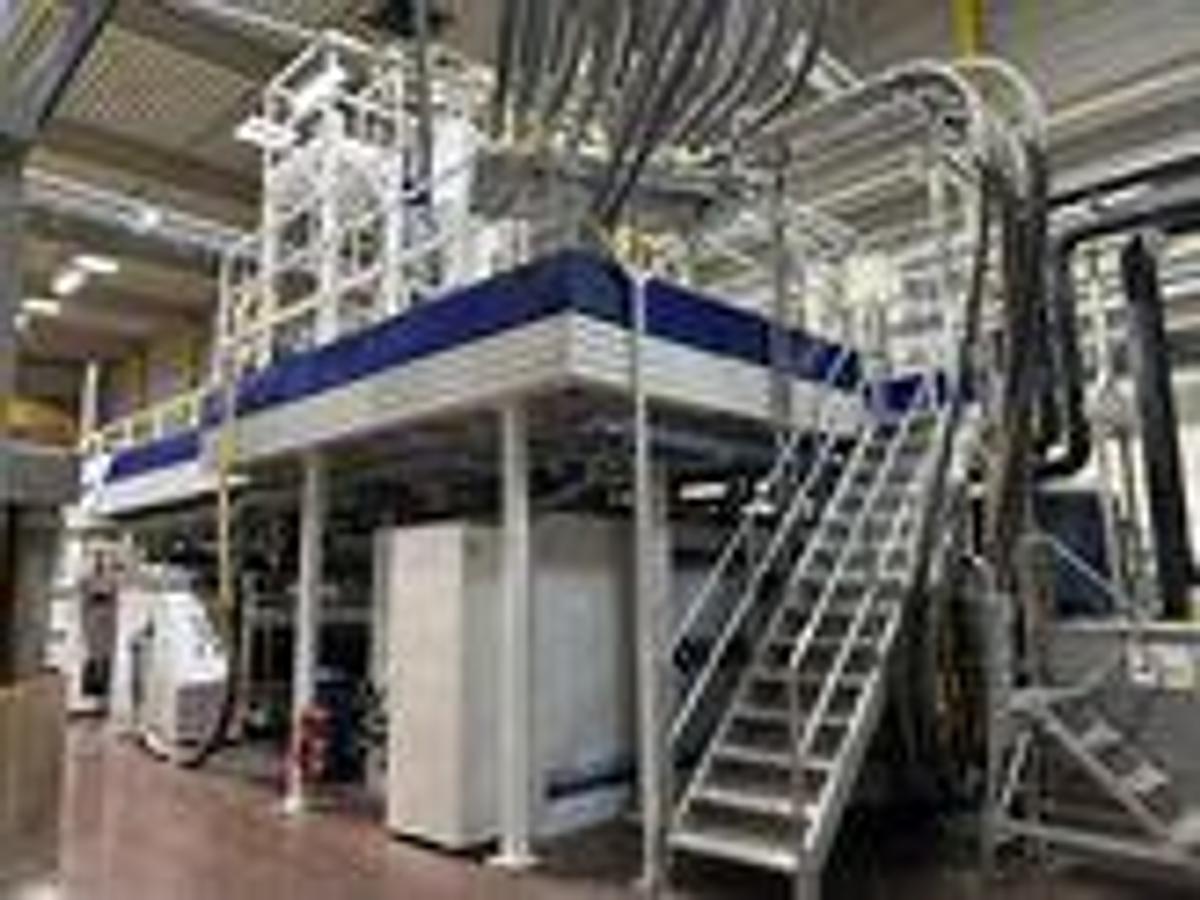

2021 Colines AllRoll Ex9 3000

COLINES EX 9 3000 CAST FILM EXTRUSION LINE

Number of layers: 9

Film structure: A, B, C, E, D, E, C, F, G

Material: Stretch film LLDPE

Film width: 3000mm

Extruder 1 layer: A

Screw diameter 1: 65mm

Description 1: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 2 layer: B

Screw diameter 2: 65mm

Description 2: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 3 layer: C

Screw diameter 3: 120mm

Description 3: single screw extruder Perform ex, L/D ratio 30 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 4 layer: D

Screw diameter 4: 80mm

Description 4: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 5 layer: E

Screw diameter 5: 120mm

Description 5: single screw extruder Perform ex, L/D ratio 30 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 6 layer: F

Screw diameter 6: 65mm

Description 6: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 7 layer: G

Screw diameter 7: 65mm

Description 7: single screw extruder Perform ex,  L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Head description: Cloren 9 layer fixed geometry feed block and automatic flat die reflex, computer controlled lip adjustment system

Die width: 3750mm

Chill roll unit with a roller diameter: 1400mm and detachment cooled roller diameter 300mm, complete with ac motor drives, rotating joints and rubber coated cleaning roller

Thickness control: NDC USA IR thickness gauge control system

Rewind: automatic winder AllspeedyIV, 3 shaft turret winding, 1500mm wide

Screen changer for extruders

Dual chamber vacuum box

Electrostatic edge pinning device

Industrial supervision fan less Pcs

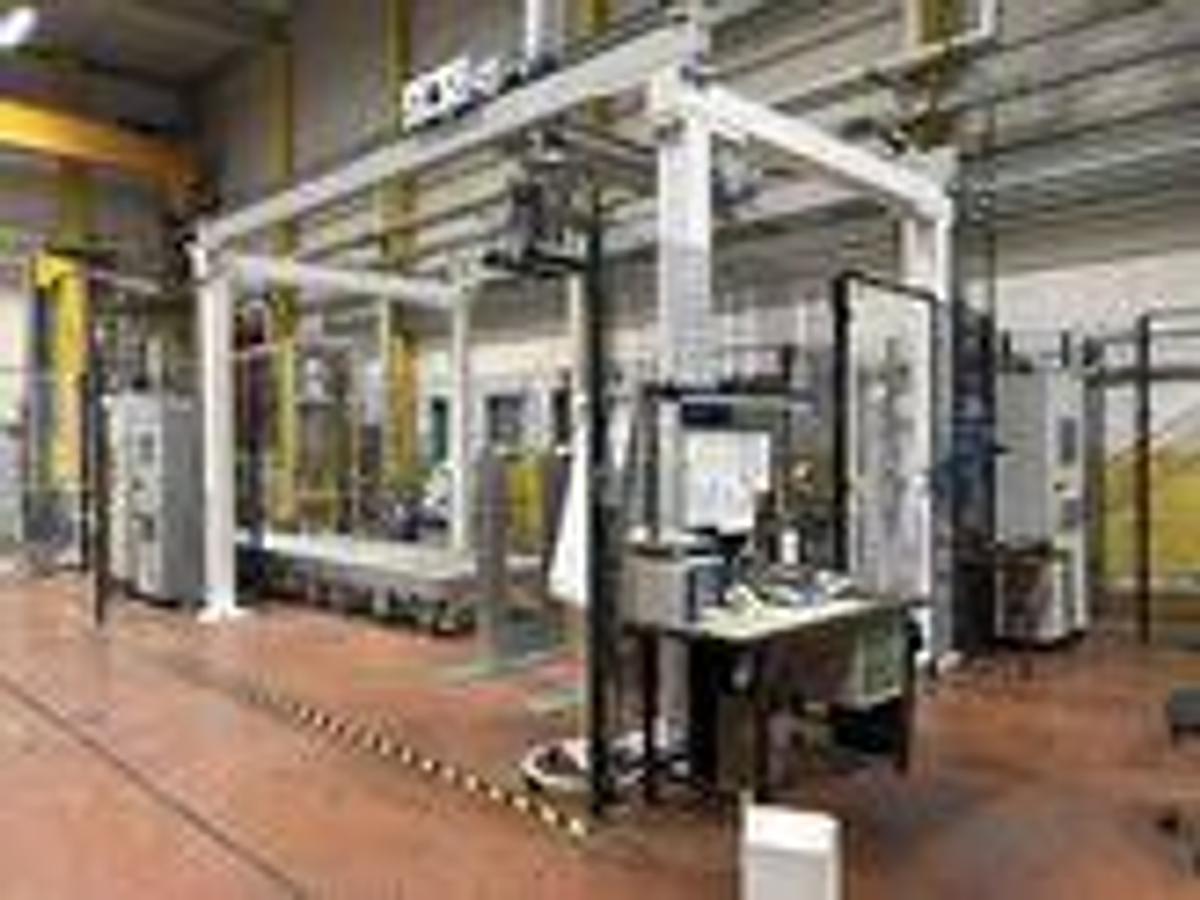

Palletizing unit for automatic and jumbo reels

Bigmouth recycling unit
