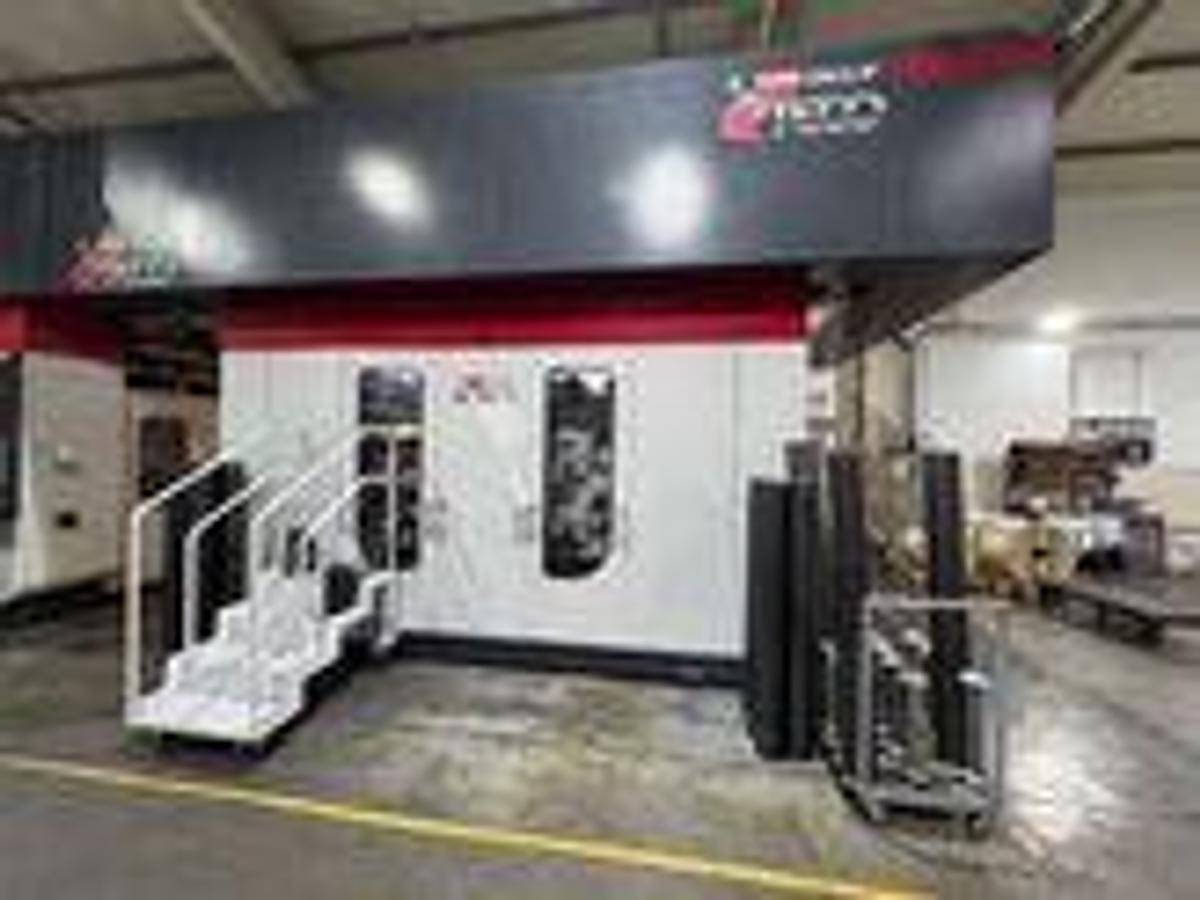

2019 Uteco Crystal 808

UTECO CRYSTAL 808 GEARLESS CI FLEXO LINE

Number of colours: 8

Print possibilities: 8 + 0

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width: 1550mm

Print width: 1500mm

Minimum print repeat: 400mm

Maximum print repeat: 850mm

Unwind: turret automatic with roll loading system

Maximum reel diameter unwind: 1000mm

Rewind: turret automatic with roll unloading system

Maximum reel diameter rewind: 1000mm

Drying: 2 zones, 4 fans with inverter control, final drying tunnel 5t long, 2 gas burners, Automatic air recirculation system in both zones with LEL control

Video camera: Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100% inspection, click and drag register adjacent system, 100% defect control

Corona treatment: Ferrarini Benelli, driven

Web guides: in and out

Viscosity control: automatic Gama G26

Washing system: automatic wash up system

Inking system: closed chamber doctor blades

Reprint system complete with register control

Automatic printing pressure setting Kiss and Go

Automatic printing pressure adjacent with speed P2P

+ print sleeves
