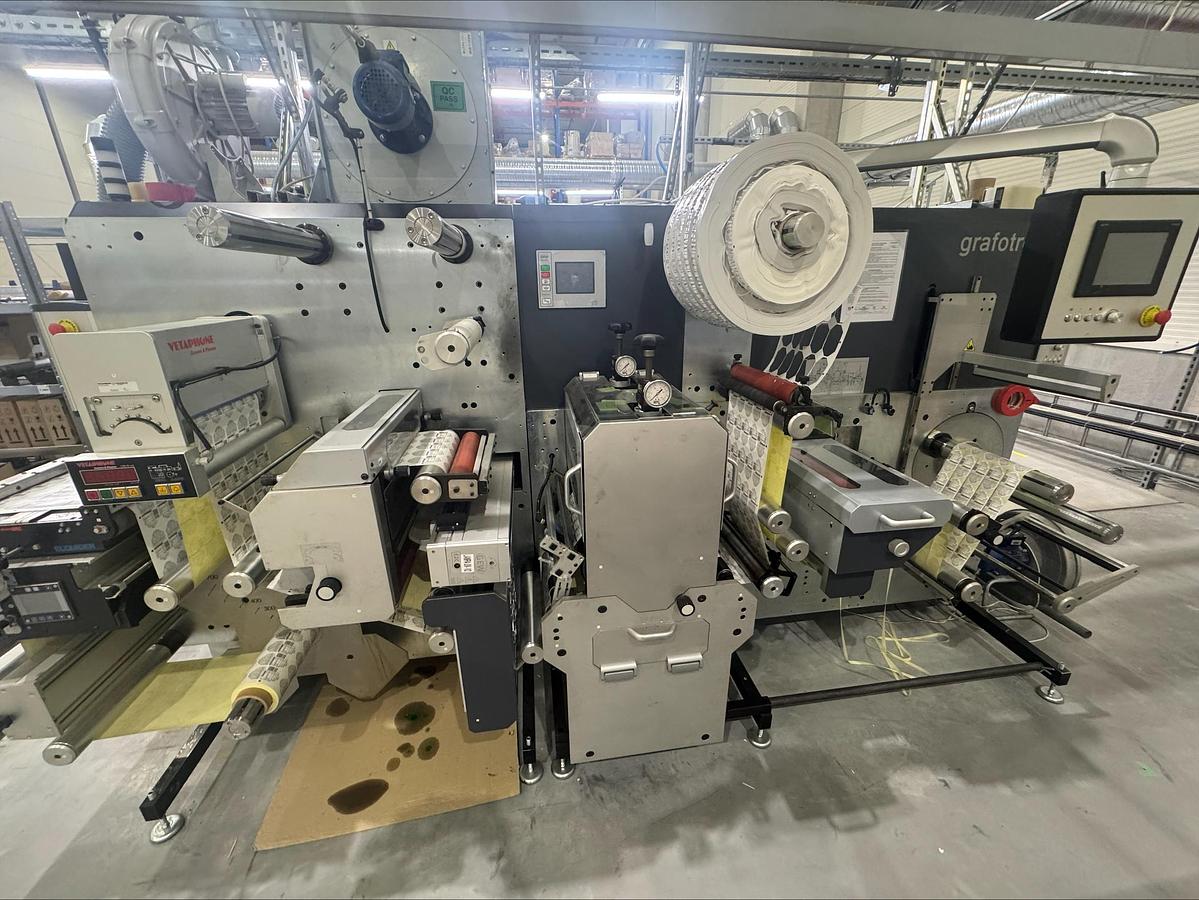

2017 Grafotronic CF2 350

Grafotronic CF2 350 Compact Digital Finishing Line

Maximum web width: 350mm

Maximum speed on web: 200m/min

Maximum speed on die cut: 50m/min

Drive system: Servo driven

Maximum unwind diameter: 750mm

Maximum rewind diameter: 600mm

Corona treater: Vetaphone VE1A

Single sided web cleaner: Kelva CWCS

Single flexographic print station for UV/IR print, full rotary, GEW cartridge

Full lamination, self wound, with carrier rewind and super lamination

Coating roller, air cylinder with rubber sleeve incl. gear and rings

Printing cylinder 10-14inch repeat, including gear and rings

Speed upgrade of semi rotary die cutting to: 70m/min maximum

Grafotronic die pressure system

Razor blade slitting station including 3 blades

2 x additional razor blade holder and blade

Manual 6E slitting knifes

Under/back scorer including 2 knives

Semi automatic turret, 420mm out- / 250mm inside rewind, 600mm on single mandrel in/out

Autogrip for easy cutting and autogrip for ready rolls, semi automatic turret

2 x additional 25mm and 40mm Q Shaft

Jog pedal
