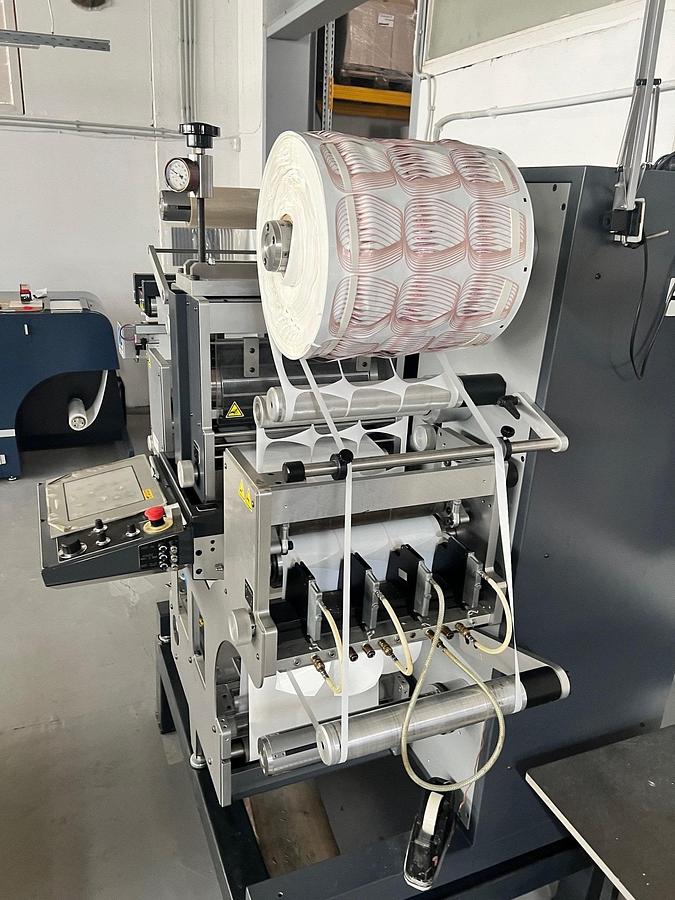

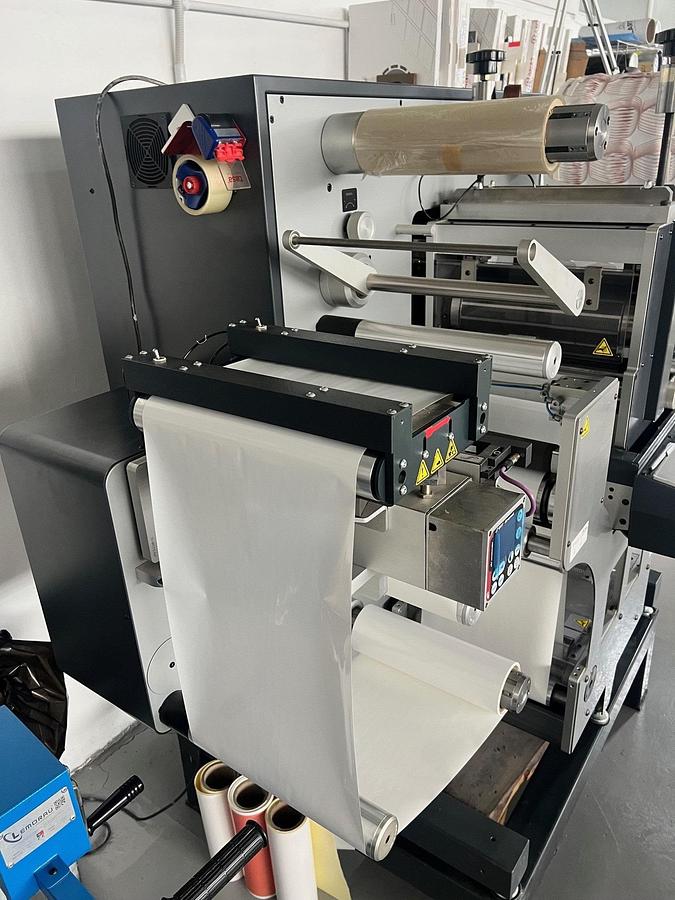

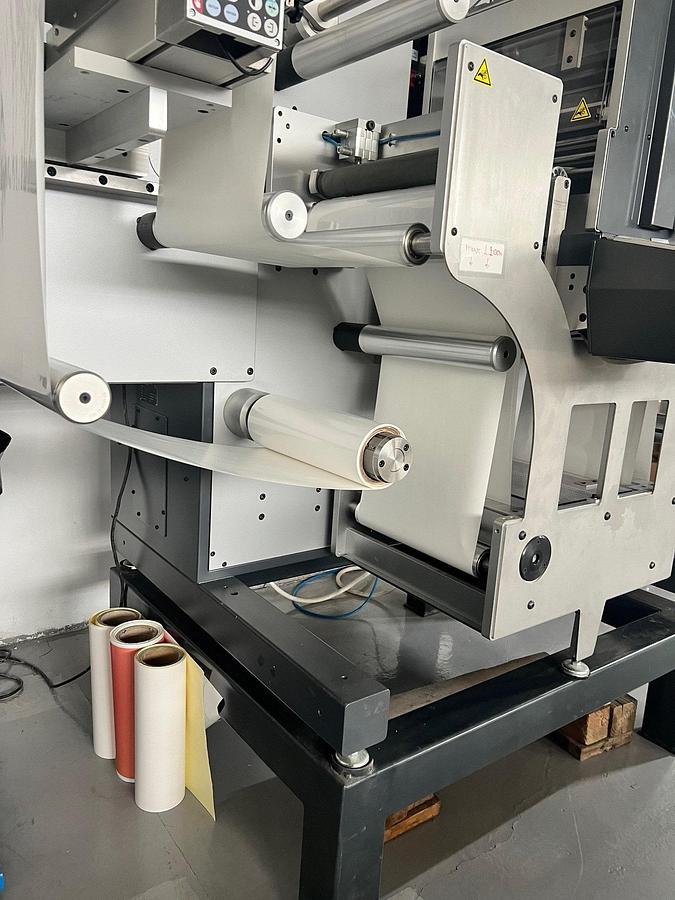

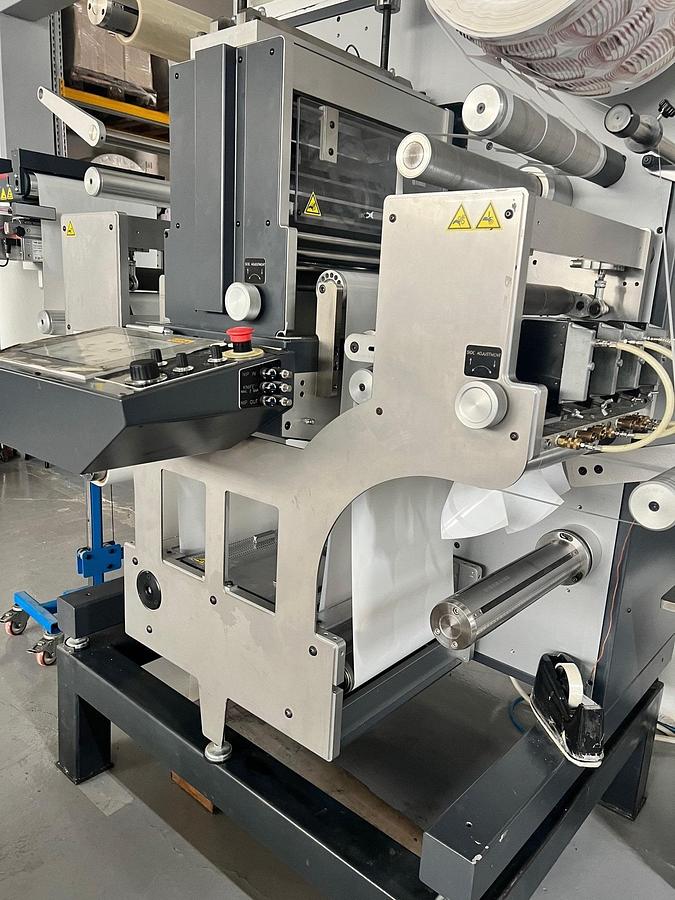

GM DC330 Nano (Grafisk Maskinfabrik)

Manufactured in 2019 and in as new condition.

GM DC330 NANO | Digital Label Converting/Finishing System

The DC 330 NANO is the most compact unit in GM’s series of label finishing machines.

The DC 330 NANO is build on the same rock solid die cut unit as the biggest DC units.

A solid 20mm metal frame ensures a vibration free basis for the four large servo motors

that drives the web. With semi-rotary die cutting, lamination and a genuine pneumatic

knifebox with crush knifes - it offers all you need for short run label production.

If needed the DC 330 NANO can work as a blank label die cutter as well.

Web Width from 200 mm up to 330 mm

Substrate Thickness from 20 μm - 200 μm

Unwinder with max reel diameter of 500 mm

BST Web Guide | Servo driven web-tension control

Precision Cutting to reduce waste

Lamination Unit with max diameter of 300 mm

Semi- and Full-Rotary Die Cutting Unit

Repeat Length from 2 – 22”

Speed: semi-rotary 32 m/min | full-rotary 50 m/min

Die plate size: 50,8 mm up to 558,8 mm

Splice Table

Rewinder with max reel diameter of 400 mm

Slitting Unit with pneumatic crush knives

Matrix Waste Rewind

10” Colour Touch Display

Compact footprint: W 1,60 m D 1,70 m H 1,50 m | 800 kg

Power and Air: 3x 400V+N+PE / 16 A / 5 bar air

Can be demonstrated, immediately available.
